Sierra Towers Lighting Impact Study
9255 Doheny Road West Hollywood, CA 90069
August 2022
- Unit #1105 -
Calibration

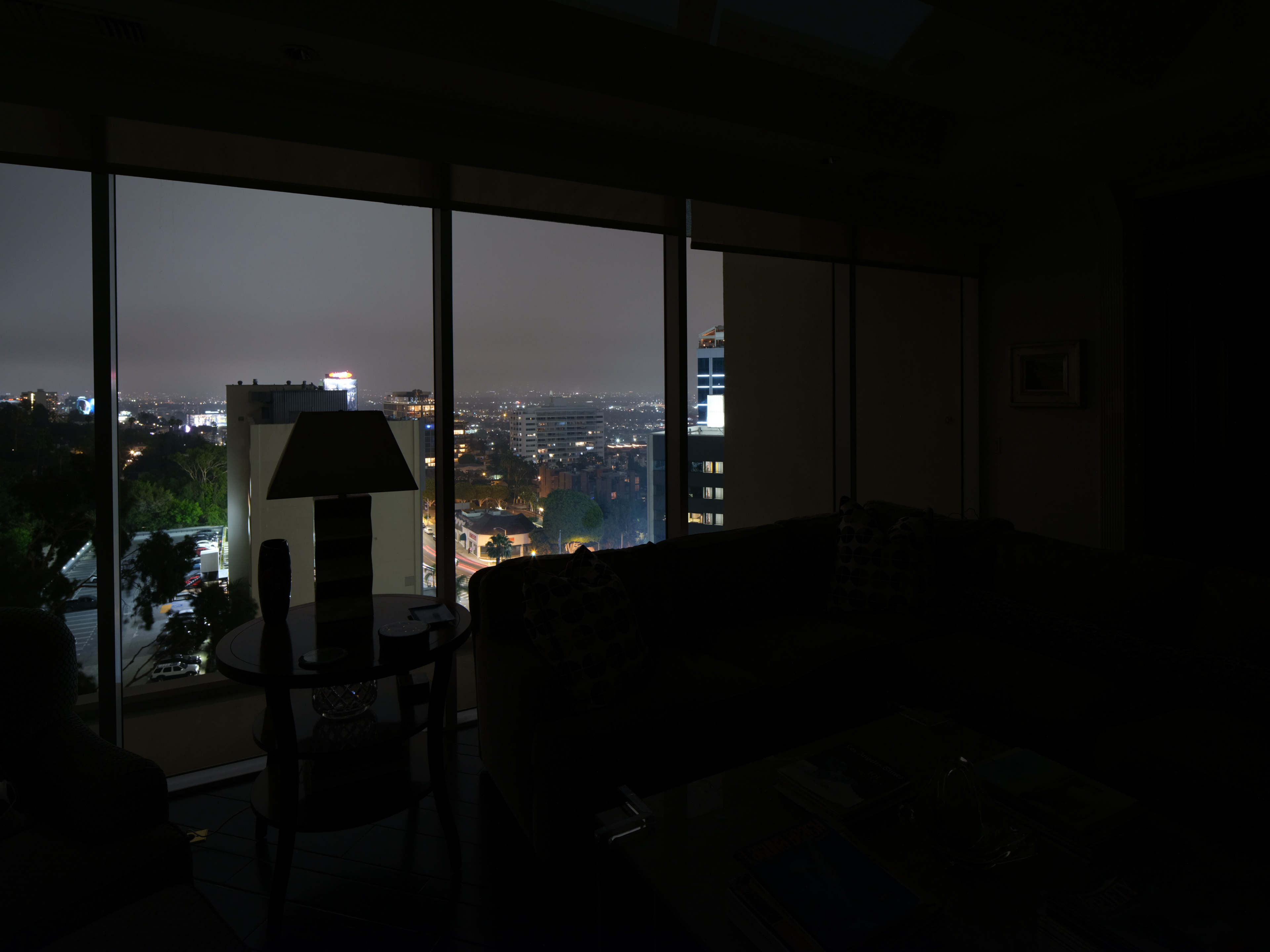

Interior Photograph | Existing Light Levels
Fujifilm GFX50S 24mm 4.0s f/11 ISO 800 | 10:25PM 06.16.22
![](https://cdn.myportfolio.com/8ce7d7d1f935e0eab9f6f51729b7d68b/c11a8504-0e33-42f8-a1b1-4b23458d2ce1_rw_1920.jpg?h=03ce6dccdd7d2a5301d5edce6c81d851)
CGI Rendering | Existing Light Levels
360° Drone HDRI Environment | Matched Camera Settings | V-Ray for 3ds Max
![](https://cdn.myportfolio.com/8ce7d7d1f935e0eab9f6f51729b7d68b/05522745-a676-442f-b9fb-15dcd3b56f25_rw_1920.jpg?h=1130f978692f5899994d44816d371d28)

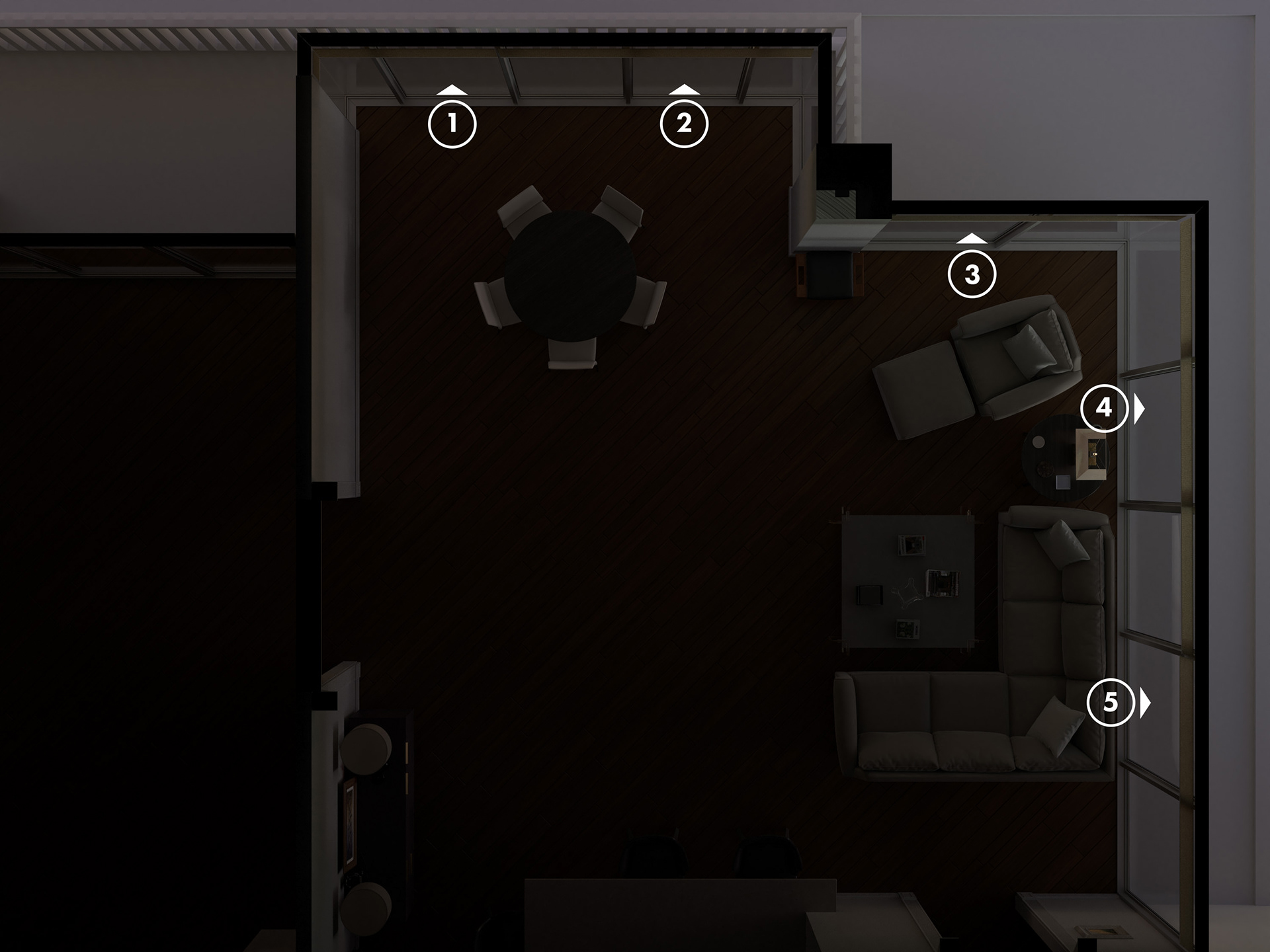

Site-measured / Simulated Lux Readings:
(1) 0.4 lux / 0.33 lux
(2) 0.4 lux / 0.33 lux
(3) 0.4 lux* / 0.42 lux
(4) 1.4 lux / 1.43 lux
(5) 1.3 lux / 1.23 lux
*This reading was recorded as 1.4 lux, which is inconsistent with both the drone photography lighting and the measured lux pattern of Unit #805. Therefore, the reading of 1.4 lux is assumed errant and substituted with the value of 0.4 lux.
![View 01 | Existing Conditions](https://cdn.myportfolio.com/8ce7d7d1f935e0eab9f6f51729b7d68b/b0f5cf8c-938a-40f9-8510-4f04beb2ca0b_rw_1920.jpg?h=a54ae852b0250bea79db0a59c51efa6c)
View 01 | Existing Conditions
![View 01 | Colored Lighting](https://cdn.myportfolio.com/8ce7d7d1f935e0eab9f6f51729b7d68b/0bfffc15-d596-45f9-b5ff-e285b5c66dd7_rw_1920.jpg?h=0592c1be943a06537cf4a3d266ddadbe)

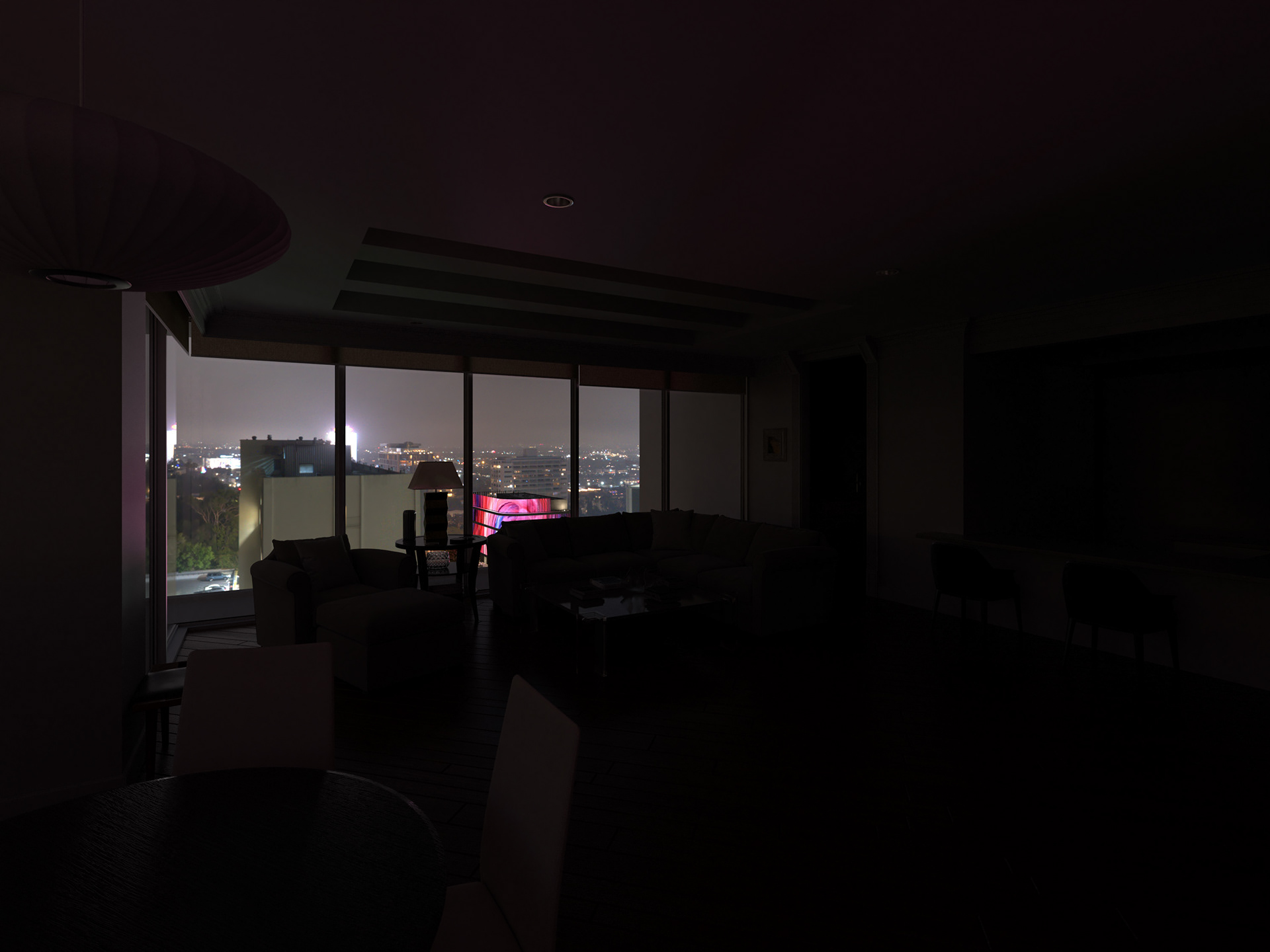

View 01 | Colored Lighting
![View 01 | Peak Brightness (300 cd/m²)](https://cdn.myportfolio.com/8ce7d7d1f935e0eab9f6f51729b7d68b/acf27beb-23b0-4960-b395-6257eb1d431c_rw_1920.jpg?h=72ec7541d3e80f3f98232eee22181bcc)
View 01 | Peak Brightness (300 cd/m²)
![View 02 | Existing Conditions](https://cdn.myportfolio.com/8ce7d7d1f935e0eab9f6f51729b7d68b/6bcce5cc-04ff-4224-937f-86e645bb0101_rw_1920.jpg?h=c4973dce2efa54991922de97d042d26f)
View 02 | Existing Conditions
![View 02 | Colored Lighting](https://cdn.myportfolio.com/8ce7d7d1f935e0eab9f6f51729b7d68b/2ca30b0e-cd0e-4d60-b592-b677acd4febd_rw_1920.jpg?h=a6bb99080a27358414c56735f3a967ae)
View 02 | Colored Lighting
![View 02 | Peak Brightness (300 cd/m²)](https://cdn.myportfolio.com/8ce7d7d1f935e0eab9f6f51729b7d68b/c60d5845-0895-47a4-8f0a-42b508ff7fbb_rw_1920.jpg?h=560e0e0a6d0c48e01fb2cd87dc46333f)
View 02 | Peak Brightness (300 cd/m²)
![View 01 | Existing Illuminance (0.0 - 1.0 lux)](https://cdn.myportfolio.com/8ce7d7d1f935e0eab9f6f51729b7d68b/12845d7f-d05f-462d-bf12-baefb5a88c3d_rw_1920.jpg?h=3a4626ba2ea3b40bde4f50c2b5a1daa4)
View 01 | Existing Illuminance (0.0 - 1.0 lux)
![View 01 | Illuminance Impact (0.0 - 1.0 lux)](https://cdn.myportfolio.com/8ce7d7d1f935e0eab9f6f51729b7d68b/43fcafbd-e3db-4ffb-a41e-2ec227ed4c06_rw_1920.jpg?h=a086b322e0d7ea07a675802f846aaed6)
View 01 | Illuminance Impact (0.0 - 1.0 lux)
![View 02 | Existing Illuminance (0.0 - 1.0 lux)](https://cdn.myportfolio.com/8ce7d7d1f935e0eab9f6f51729b7d68b/fdf32a6c-e2ab-4458-a3b0-f66a3389f40f_rw_1920.jpg?h=e8db5c16955bc85d6f723ea7f856c008)
View 02 | Existing Illuminance (0.0 - 1.0 lux)
![View 02 | Illuminance Impact (0.0 - 1.0 lux)](https://cdn.myportfolio.com/8ce7d7d1f935e0eab9f6f51729b7d68b/63ebae89-ce71-4db7-bc5d-88ba305a3415_rw_1920.jpg?h=215d218a44e21913b3b84ea8a762424d)
View 02 | Illuminance Impact (0.0 - 1.0 lux)
![Existing Illuminance (Lux)](https://cdn.myportfolio.com/8ce7d7d1f935e0eab9f6f51729b7d68b/6abfc7f9-6f32-4d47-8e0e-2967c6b6e160_rw_1920.jpg?h=0dd6036779c716d2825530e362dfe619)
Existing Illuminance (Lux)
![Illuminance Impact at Peak Brightness (Lux)](https://cdn.myportfolio.com/8ce7d7d1f935e0eab9f6f51729b7d68b/356bba9f-52bd-48fc-888d-a09ff0207c42_rw_1920.jpg?h=e7f9b2aa3ed1bfe8130dd8624bbd3c7a)
Illuminance Impact at Peak Brightness (Lux)
![Illuminance Impact at Peak Brightness (%)](https://cdn.myportfolio.com/8ce7d7d1f935e0eab9f6f51729b7d68b/45452483-d33f-4a04-be57-4f1fbbd1450f_rw_1920.jpg?h=6adec5aadbc1e95554c65dcf998ca238)
Illuminance Impact at Peak Brightness (%)
Notes
1. Peak signage brightness of 300 cd/m², and visual comfort requirements per WeHo's Sunset Blvd Off-Site Signage Policy
2. The size, density, and layout of the signage's linear LED elements have been extrapolated from Gensler's architectural drawings and renderings available in this report from June 2021.
For this lighting study, the LED elements have been modeled at 1.0" wide and spaced at 2.375" center-to-center within the areas of highest density.
3. The Pendry West Hollywood Hotel at 8430 Sunset Blvd. was used as an active precedent for the look and feel of city-approved animated video content.
