Sierra Towers Lighting Impact Study
9255 Doheny Road West Hollywood, CA 90069
August 2022
- Unit #1206 -
Calibration

Extrapolation of measured illuminance data from units #806, #906, #1706 to approximate existing illuminance values in unit #1206. No measured data available for #1206.

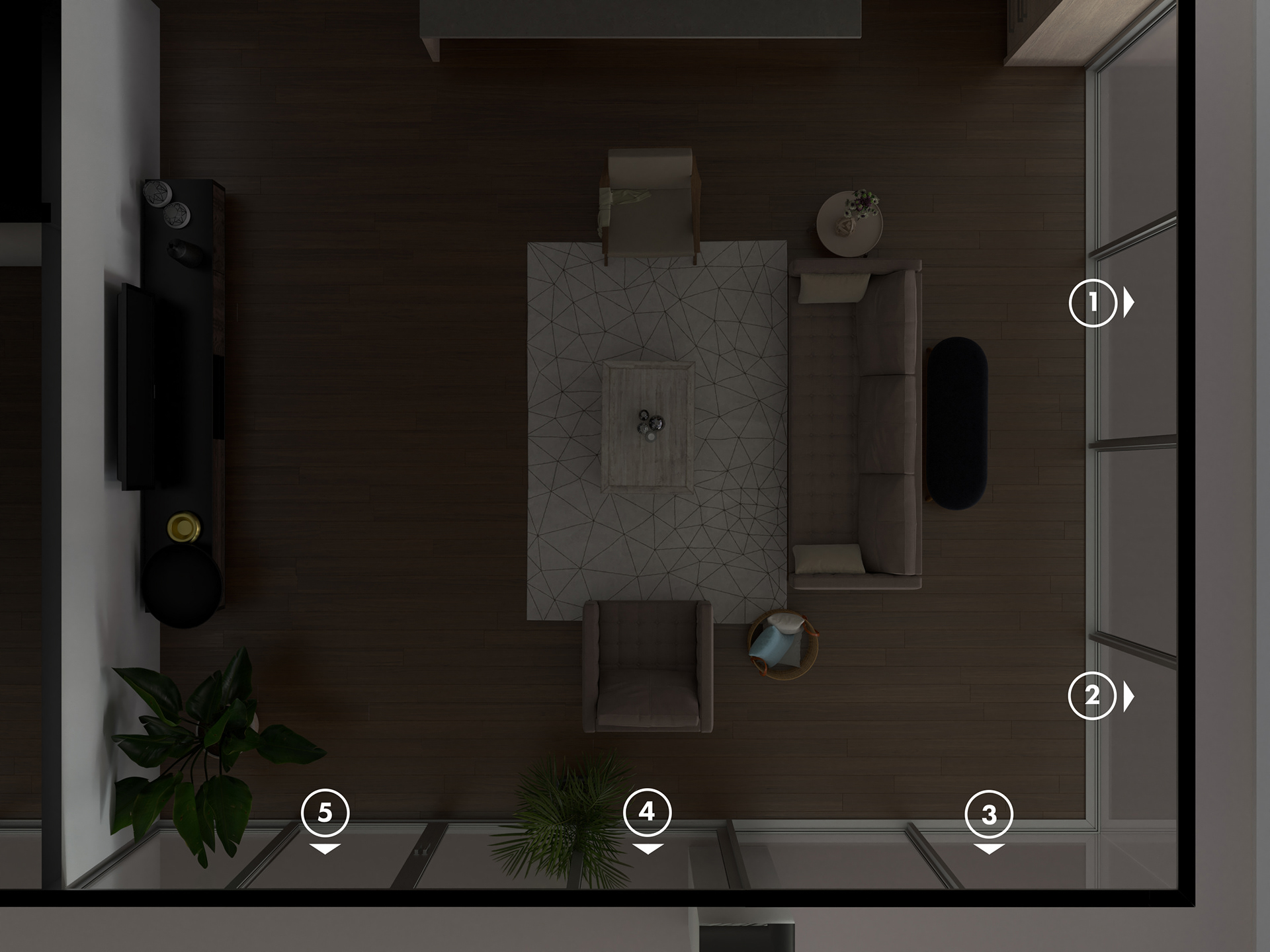

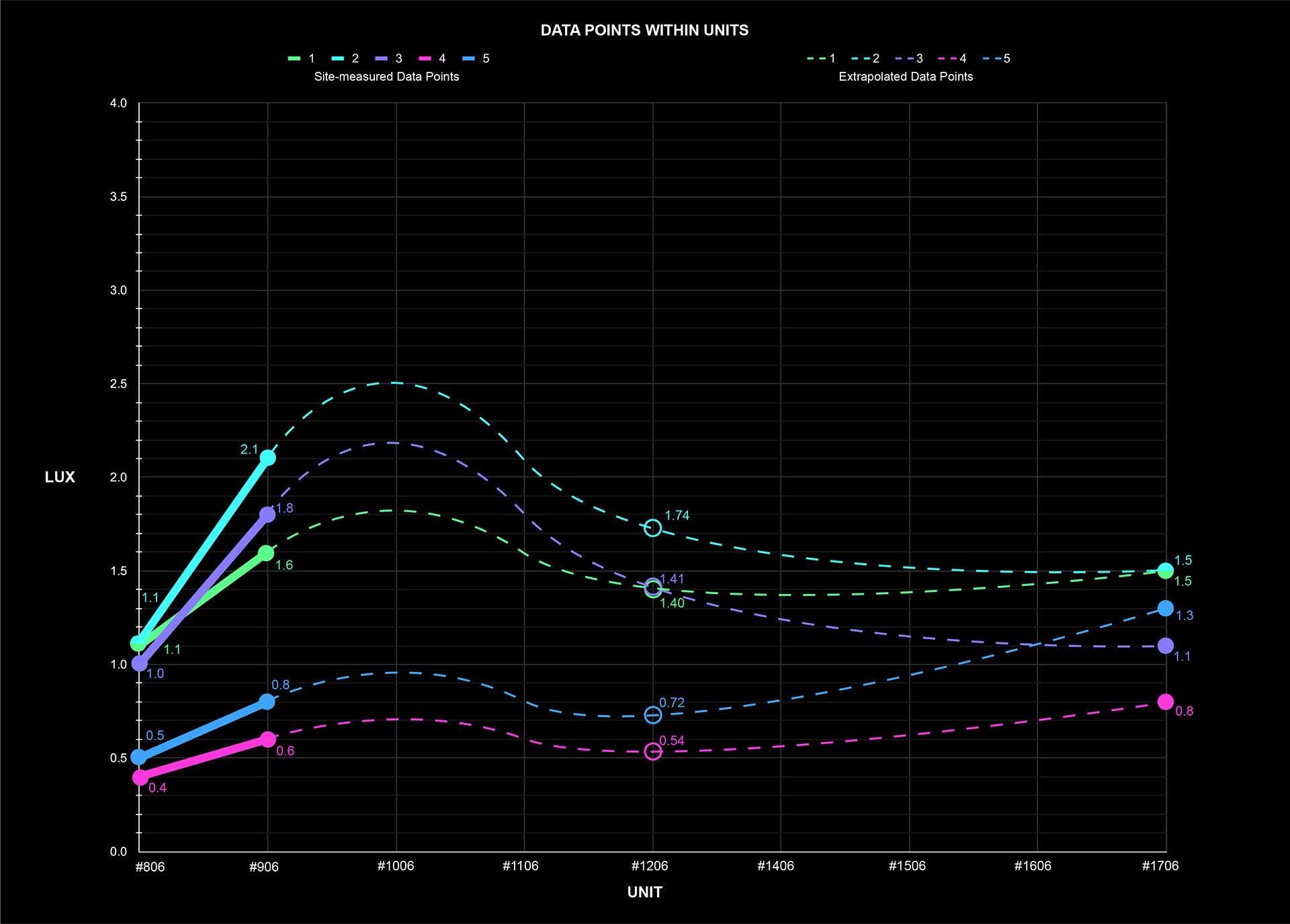

Extrapolated / Simulated Lux Readings:
(1) 1.40 lux / 1.52 lux
(2) 1.74 lux / 1.60 lux
(3) 1.41 lux / 1.44 lux
(4) 0.54 lux / 0.53 lux
(5) 0.72 lux / 0.83 lux

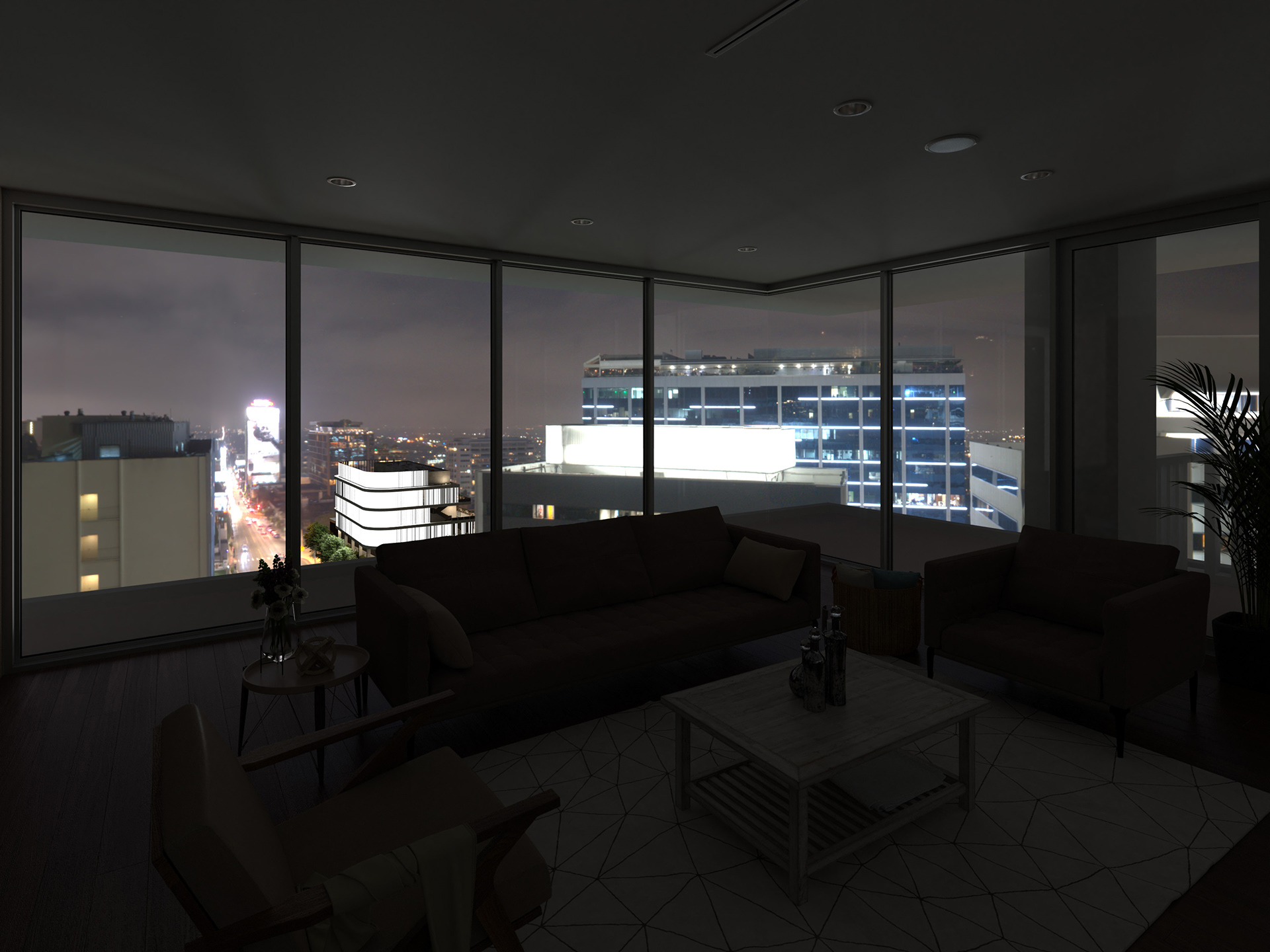

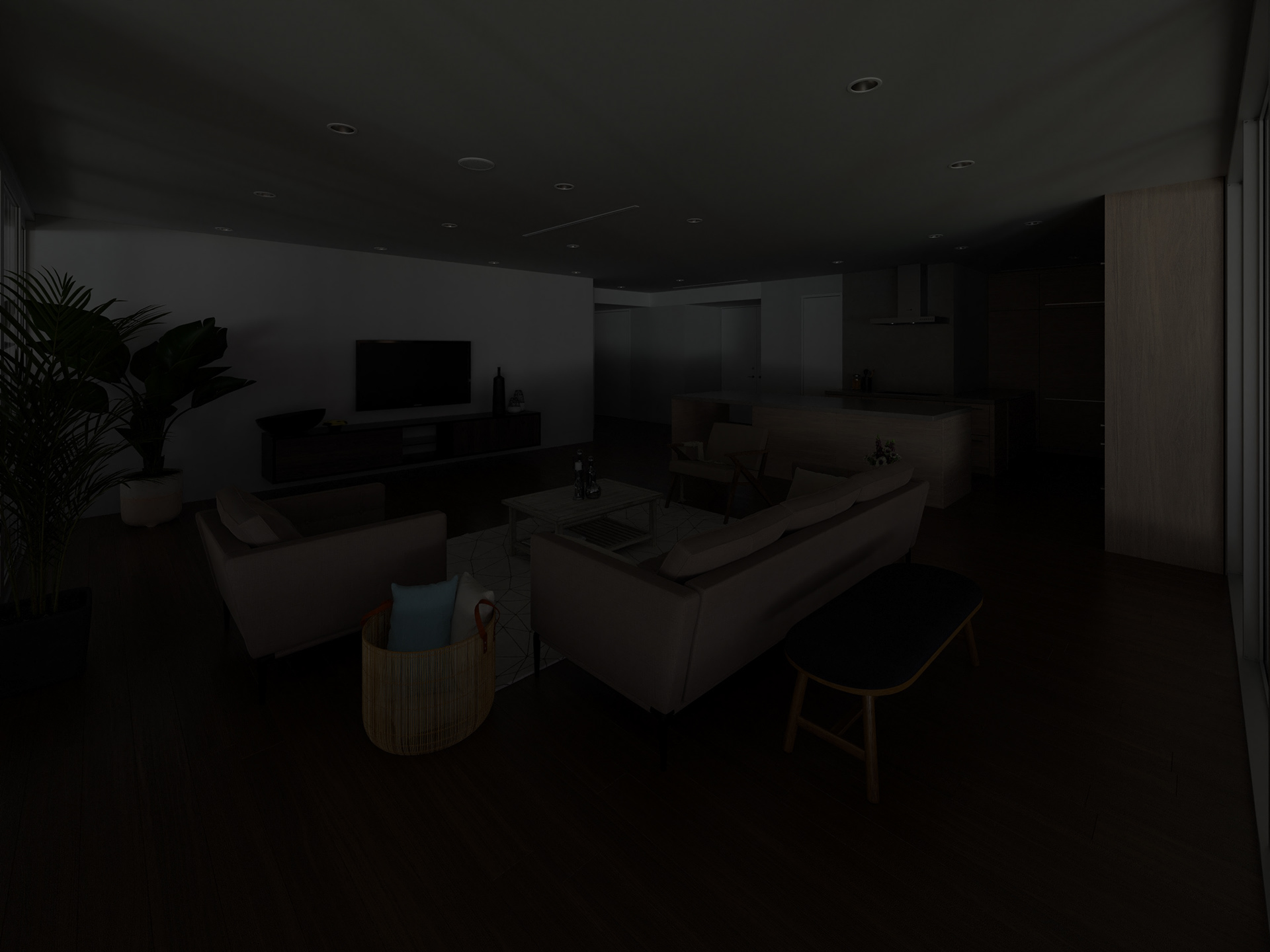

View 01 | Existing Conditions

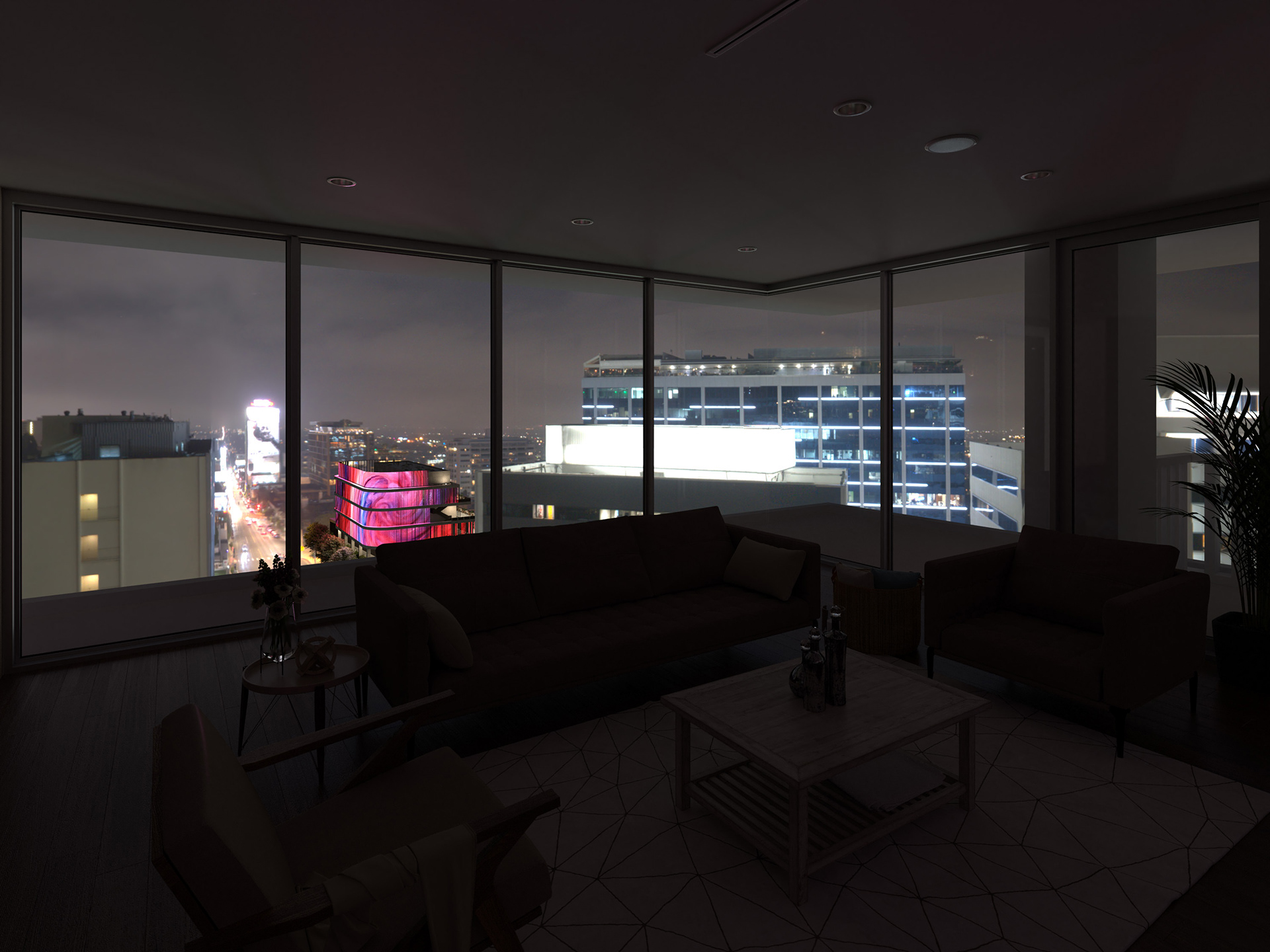

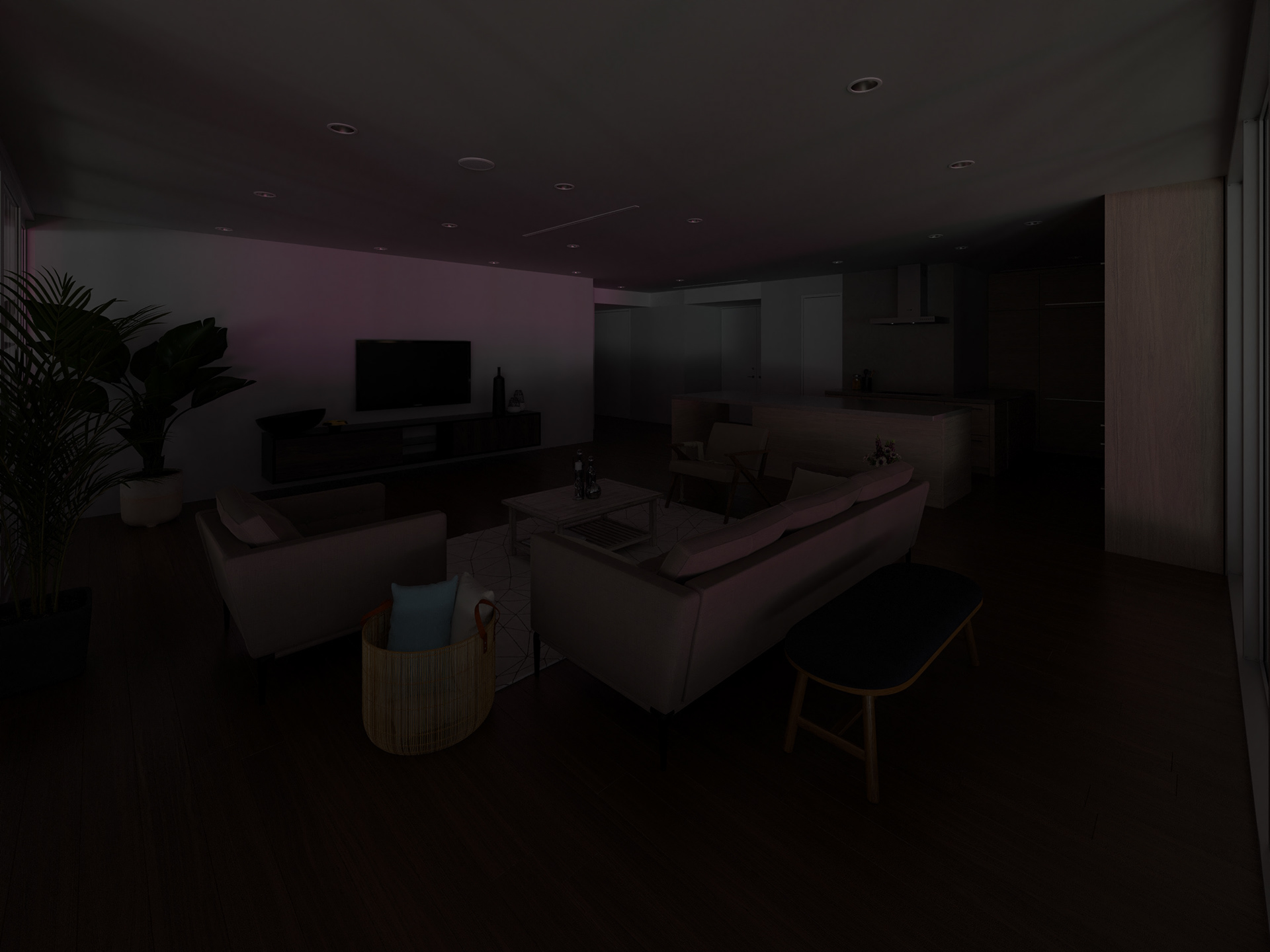

View 01 | Colored Lighting

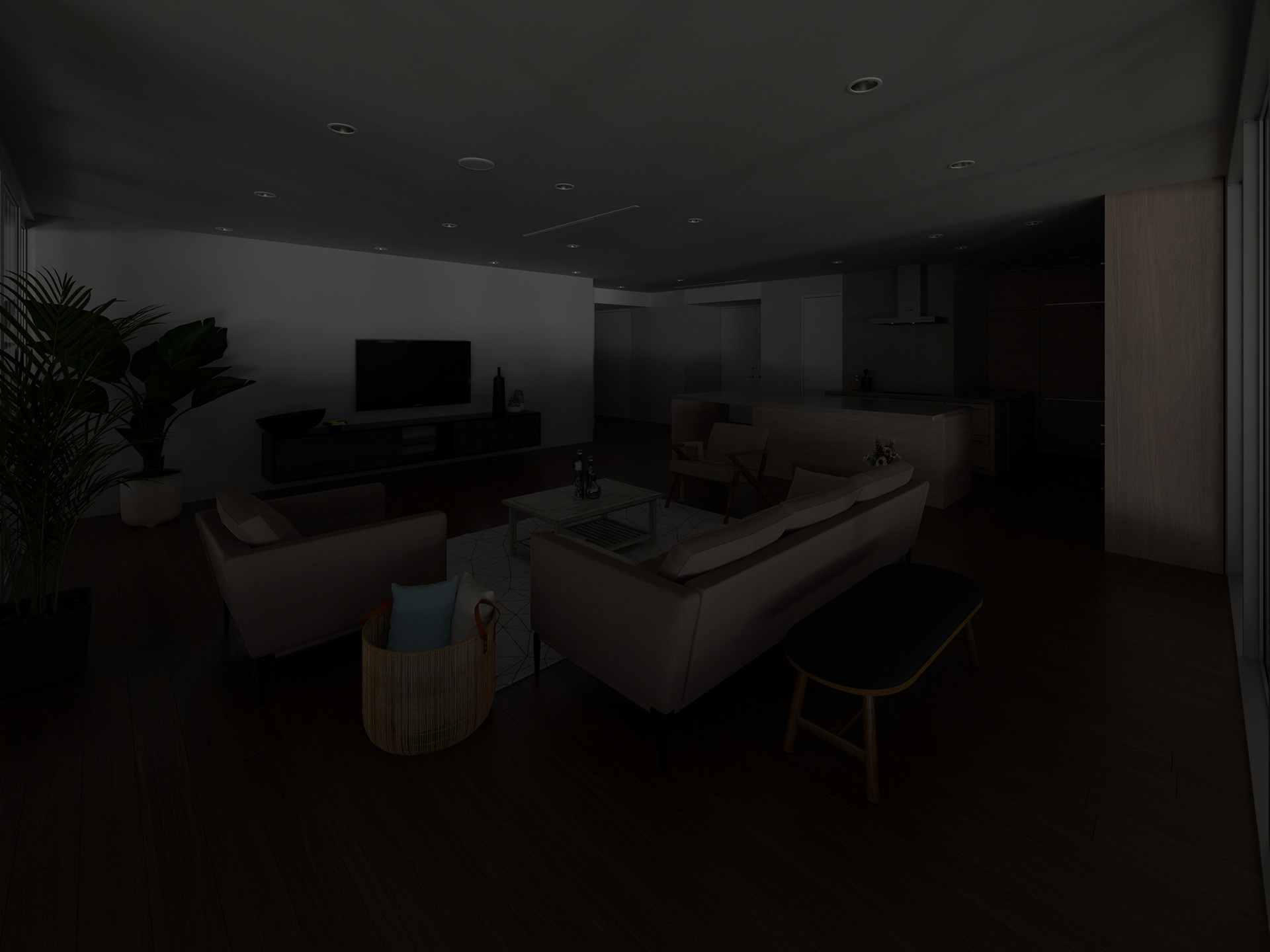

View 01 | Peak Brightness (300 cd/m²)

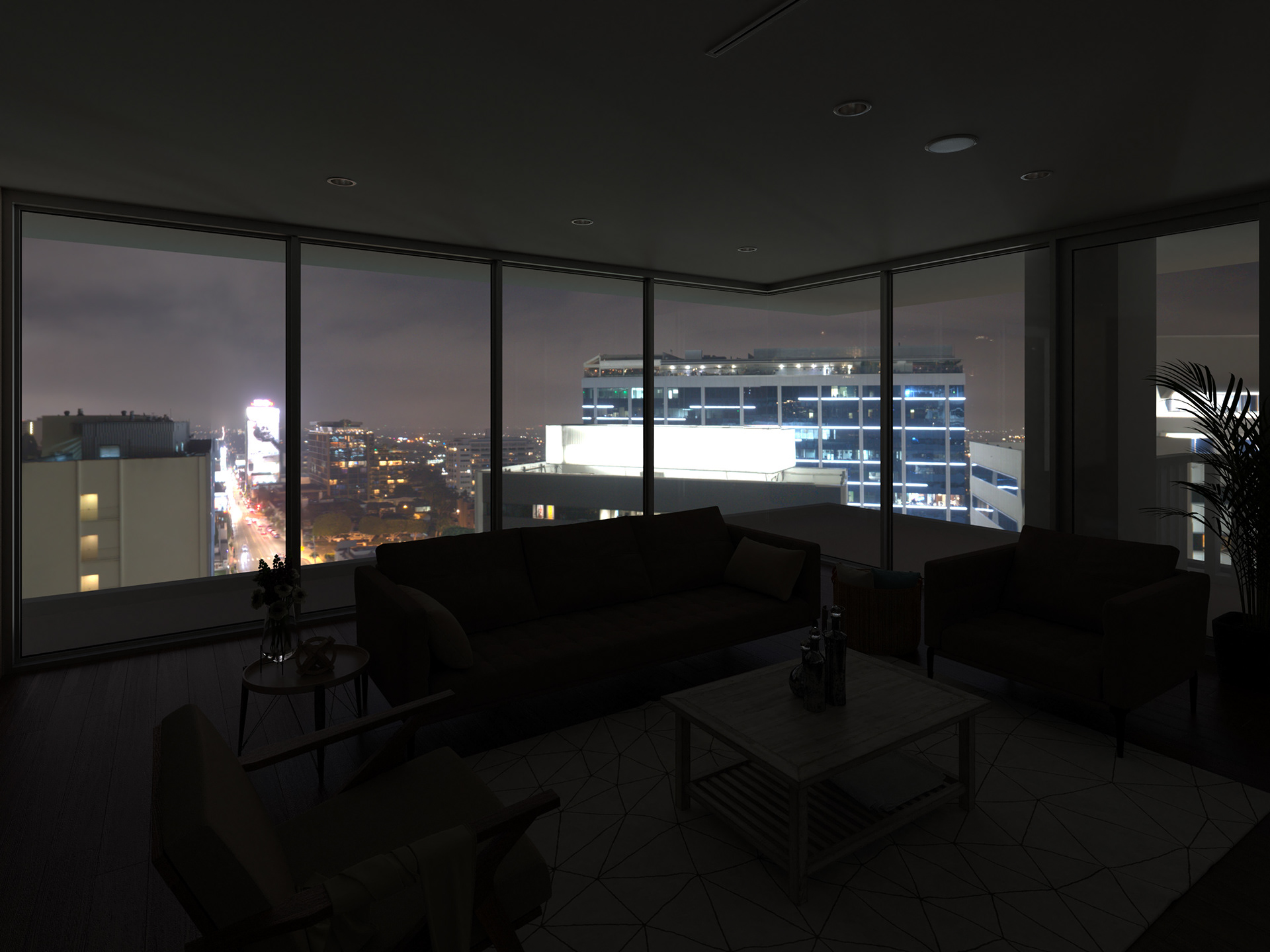

View 02 | Existing Conditions

View 02 | Colored Lighting

View 02 | Peak Brightness (300 cd/m²)

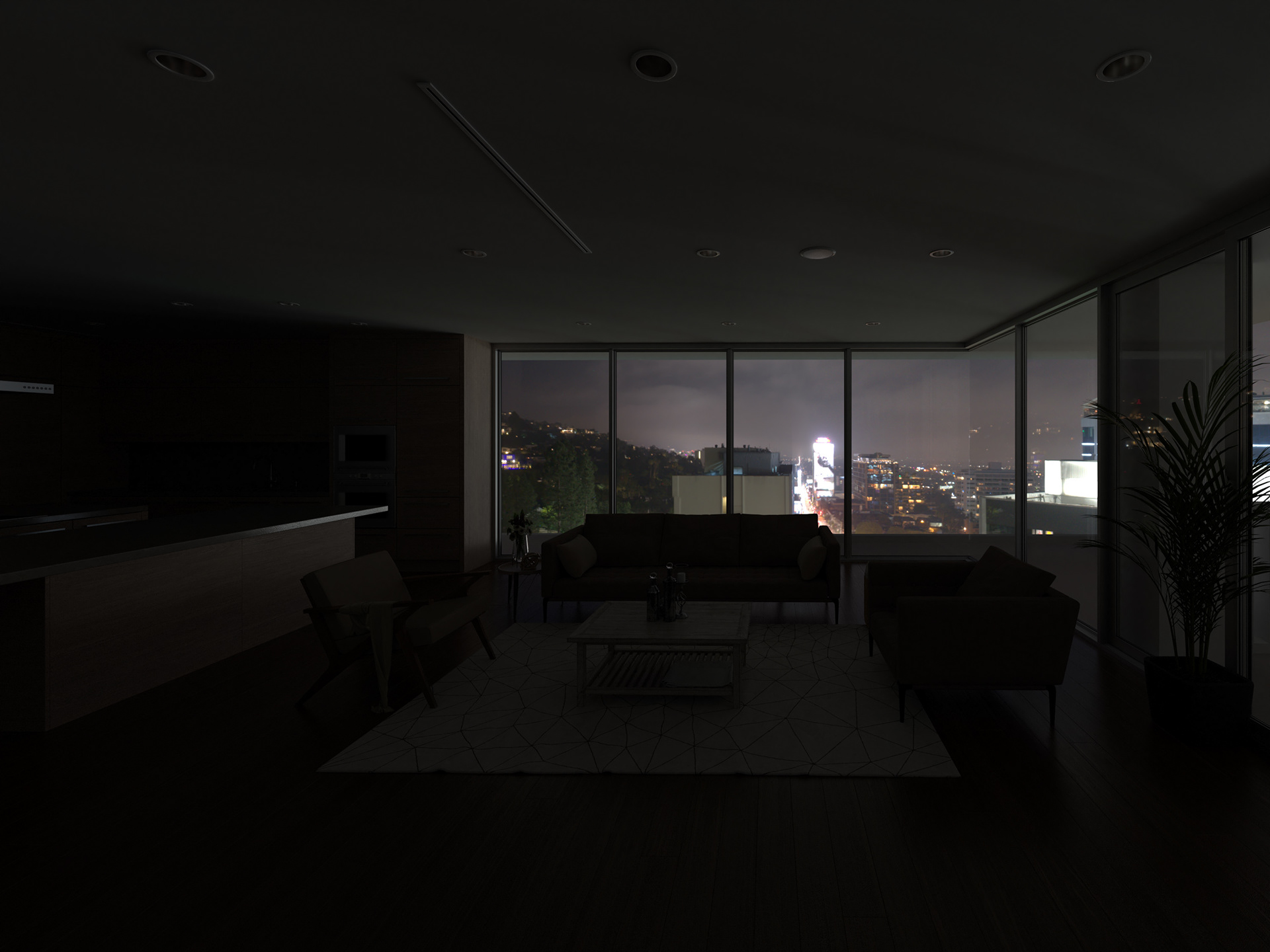

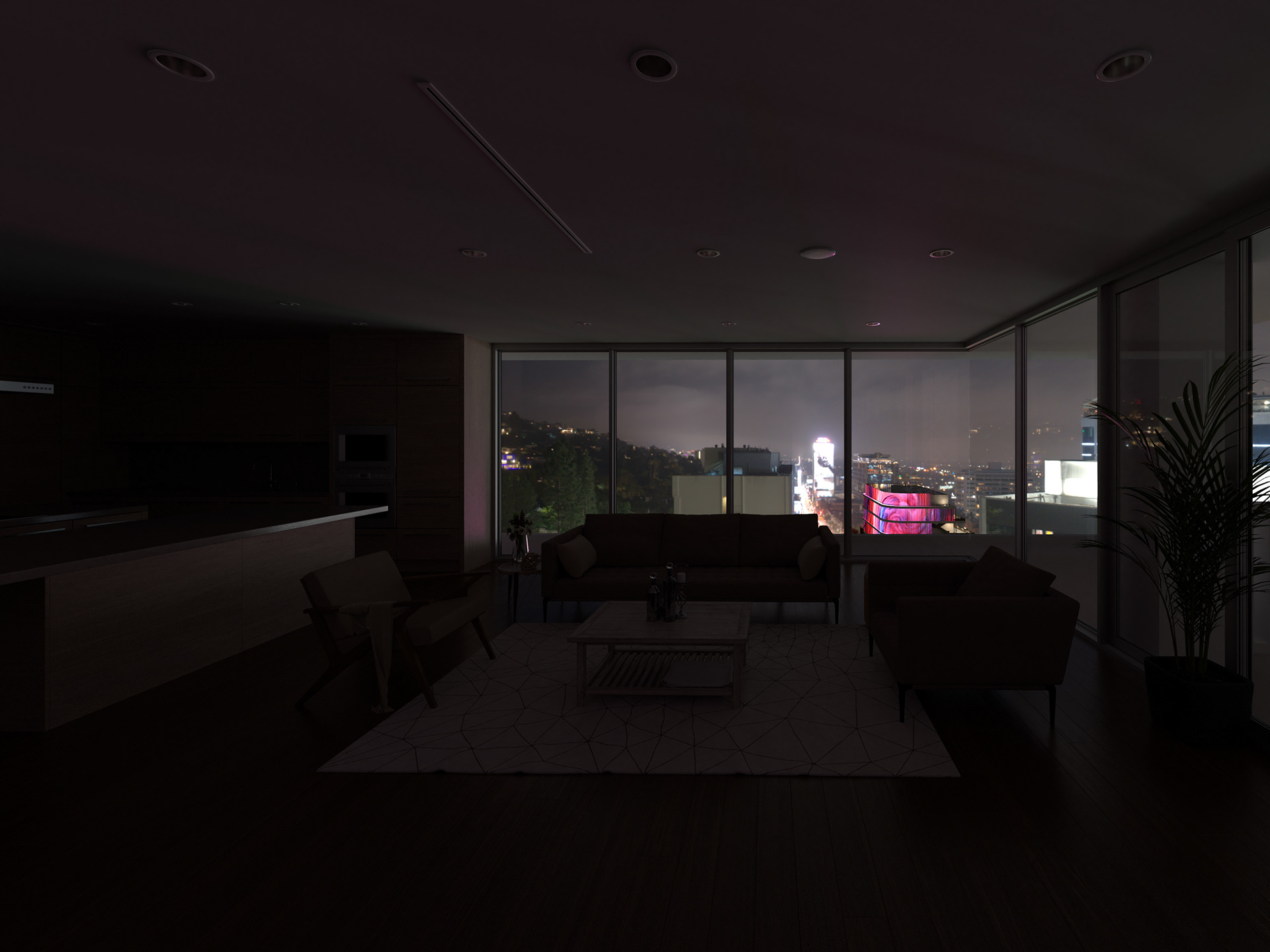

View 03 | Existing Conditions

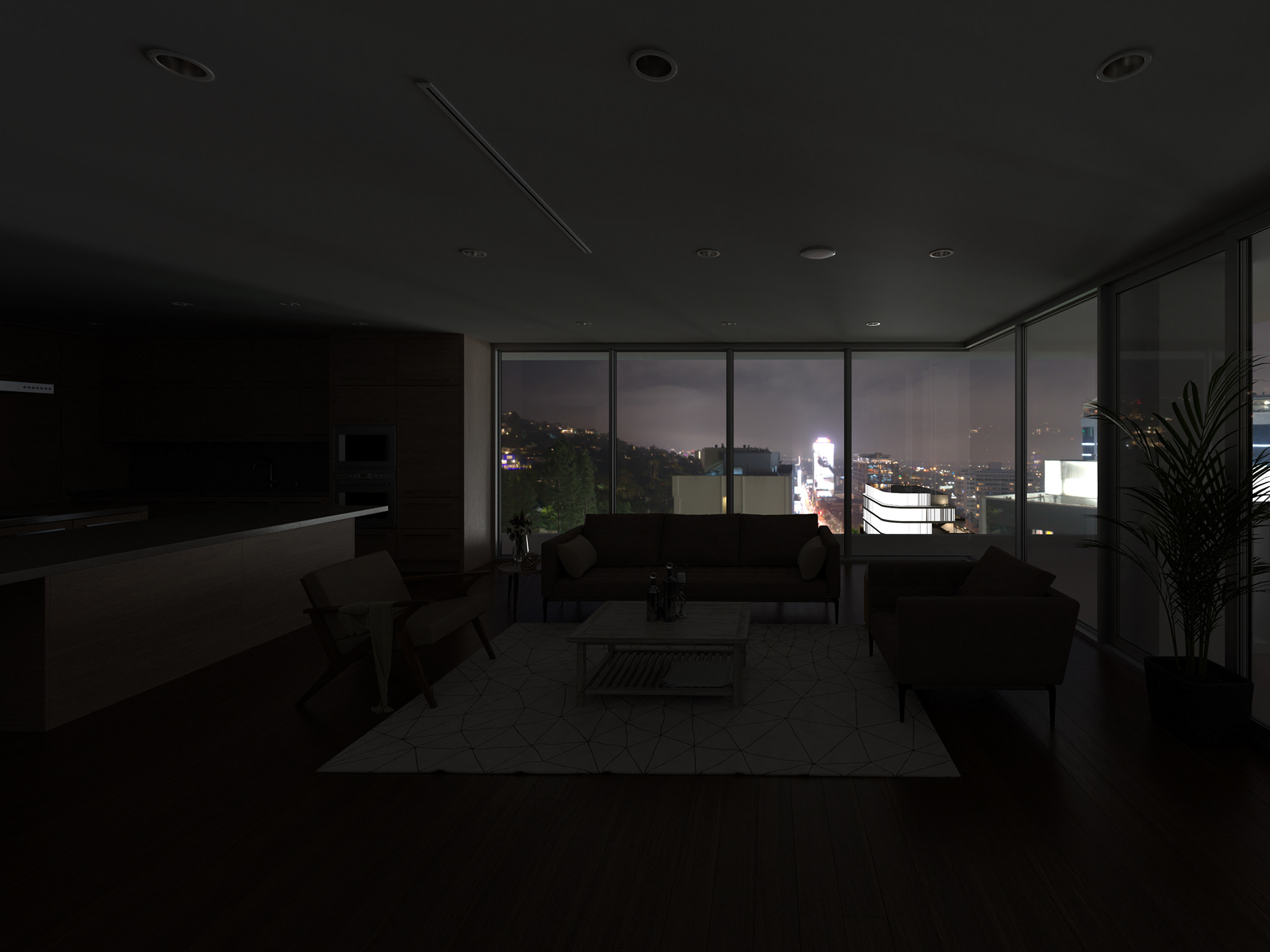

View 03 | Colored Lighting

View 03 | Peak Brightness (300 cd/m²)

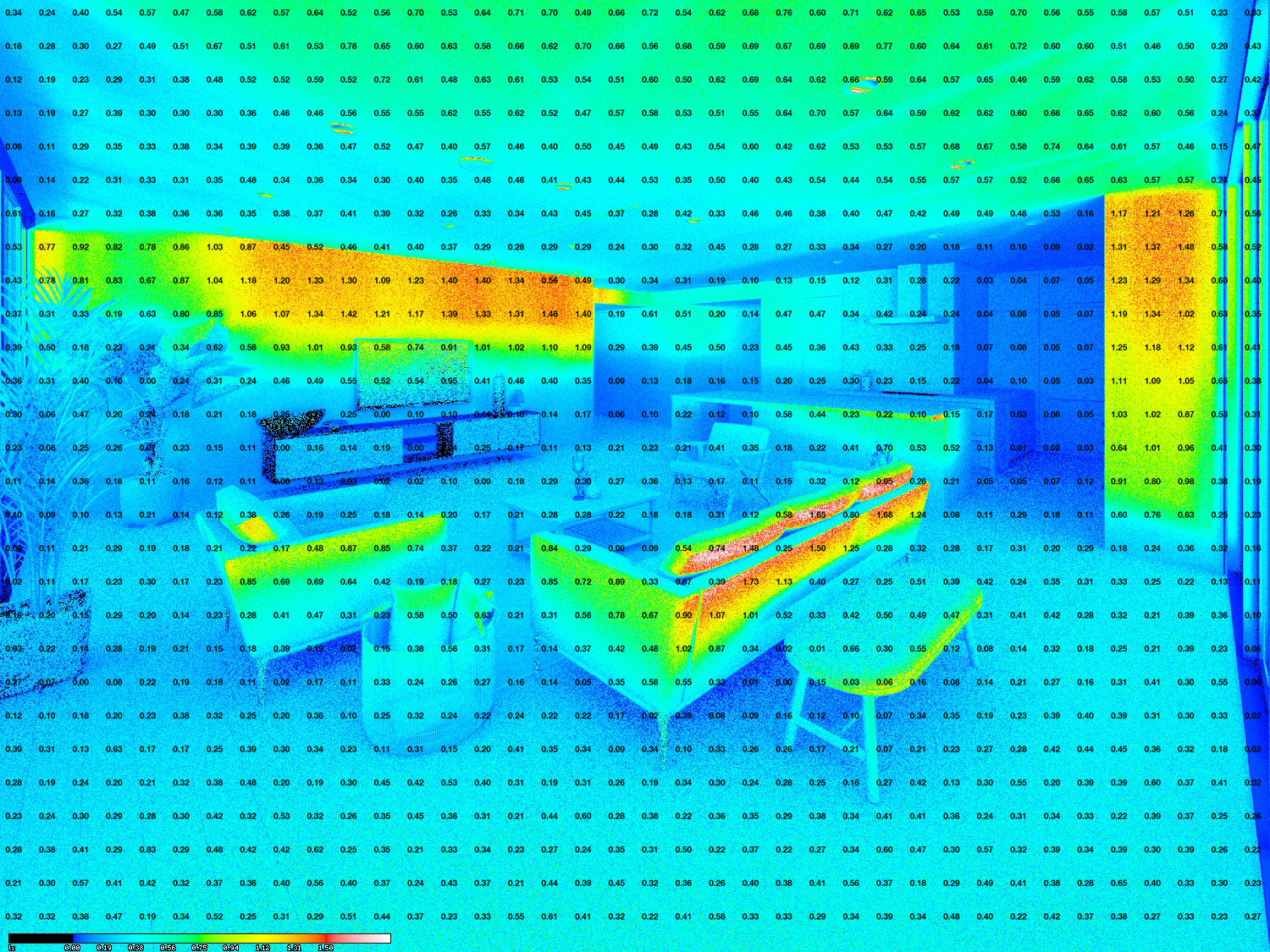

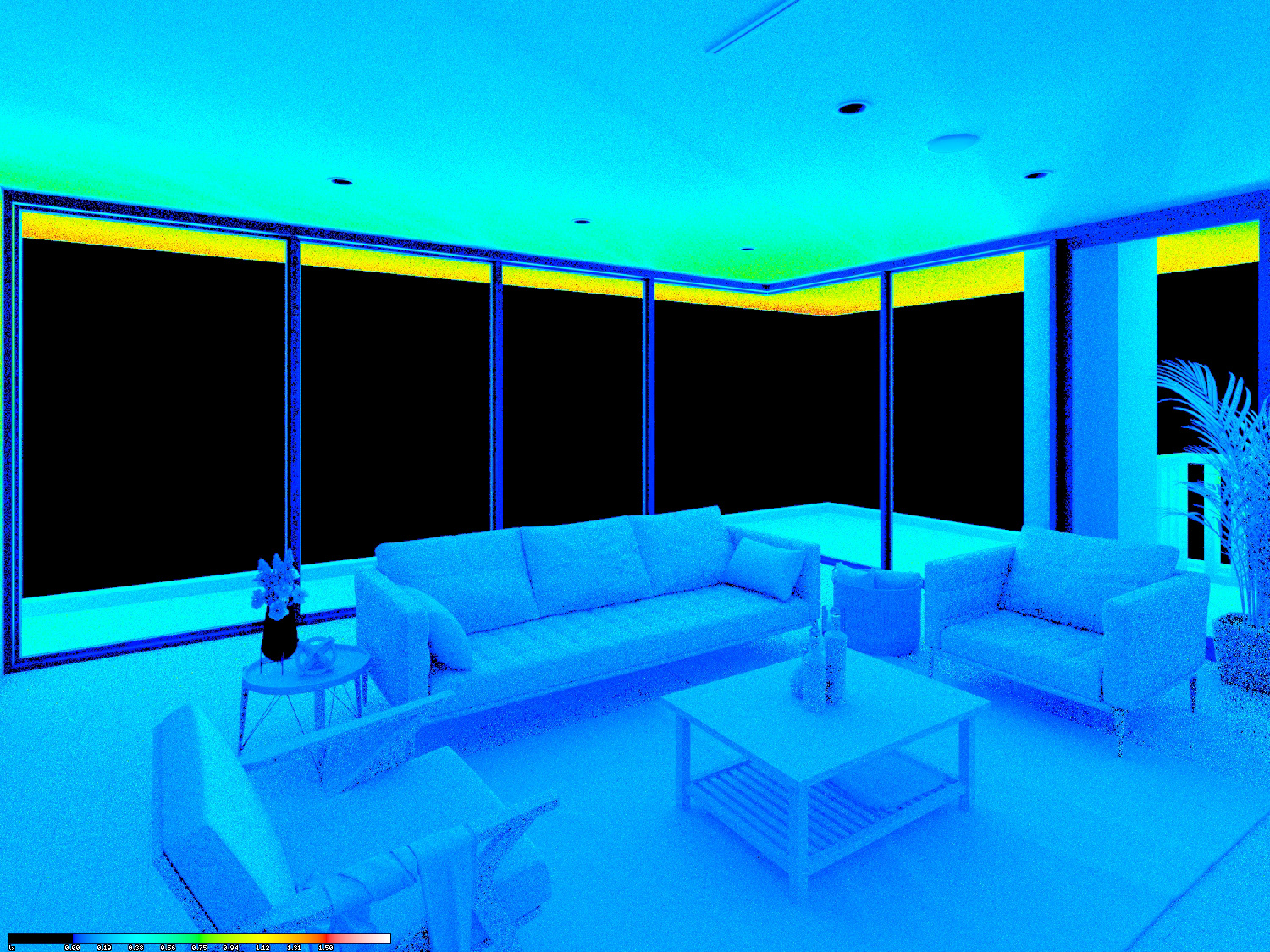

View 01 | Existing Illuminance (0.0 - 1.5 lux)

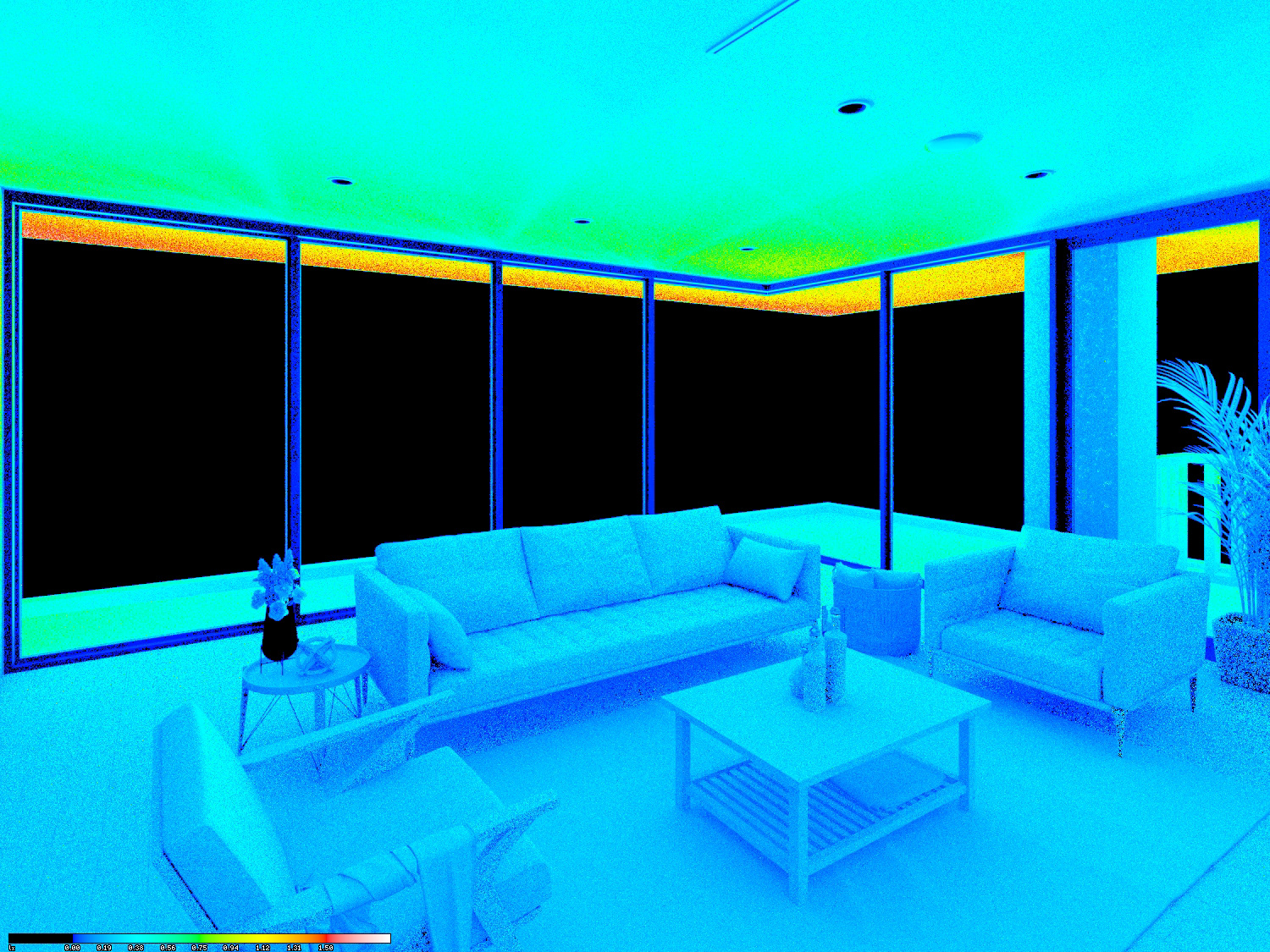

View 01 | Illuminance Impact (0.0 - 1.5 lux)

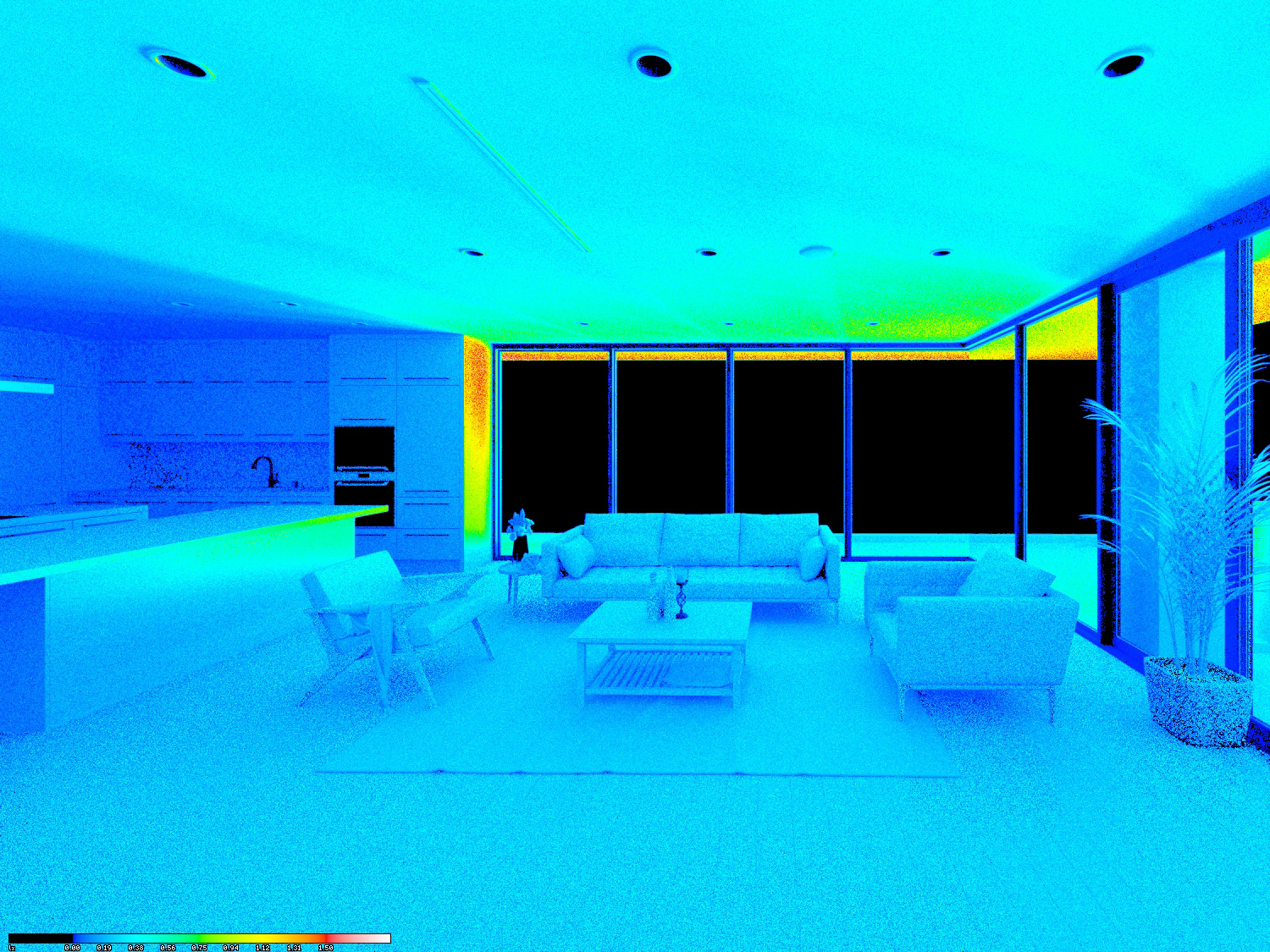

View 02 | Existing Illuminance (0.0 - 1.5 lux)

View 02 | Illuminance Impact (0.0 - 1.5 lux)

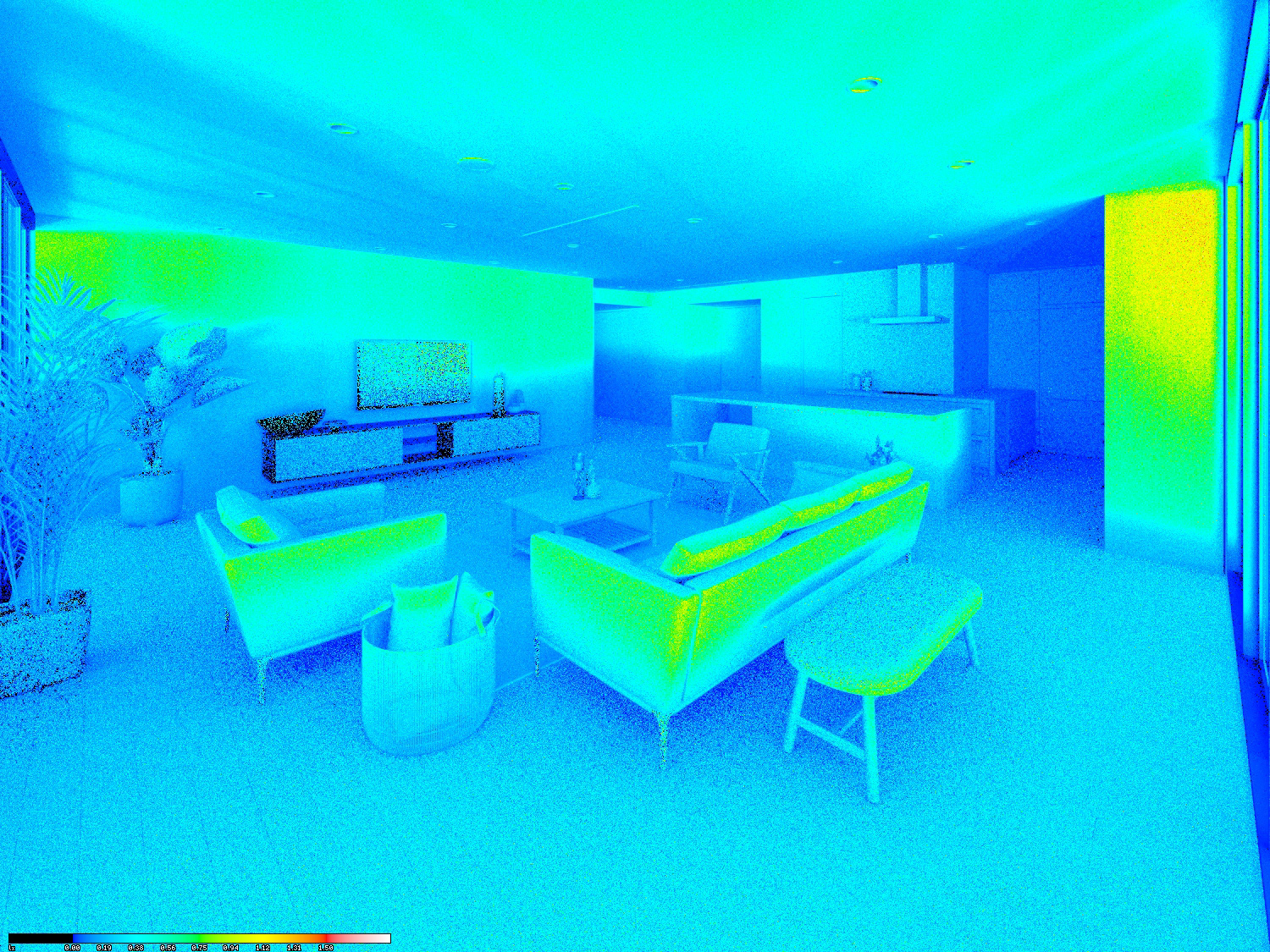

View 03 | Existing Illuminance (0.0 - 1.5 lux)

View 03 | Illuminance Impact (0.0 - 1.5 lux)

Existing Illuminance (Lux)

Illuminance Impact at Peak Brightness (Lux)

Illuminance Impact at Peak Brightness (%)
Notes
1. Peak signage brightness of 300 cd/m², and visual comfort requirements per WeHo's Sunset Blvd Off-Site Signage Policy
2. The size, density, and layout of the signage's linear LED elements have been extrapolated from Gensler's architectural drawings and renderings available in this report from June 2021.
For this lighting study, the LED elements have been modeled at 1.0" wide and spaced at 2.375" center-to-center within the areas of highest density.
3. The Pendry West Hollywood Hotel at 8430 Sunset Blvd. was used as an active precedent for the look and feel of city-approved animated video content.
