Sierra Towers Lighting Impact Study

9255 Doheny Road     West Hollywood, CA 90069

July 2022

-  Unit #806  -
Calibration

Interior Photograph  |  Existing Light Levels

Fujifilm GFX50S 24mm 4.0s f/11 ISO 800   |  9:53PM 06.16.22​​​​​​​

CGI Rendering  |  Existing Light Levels

360° Drone HDRI Environment   |  Matched Camera Settings  |   V-Ray for 3ds Max​​​​​​​

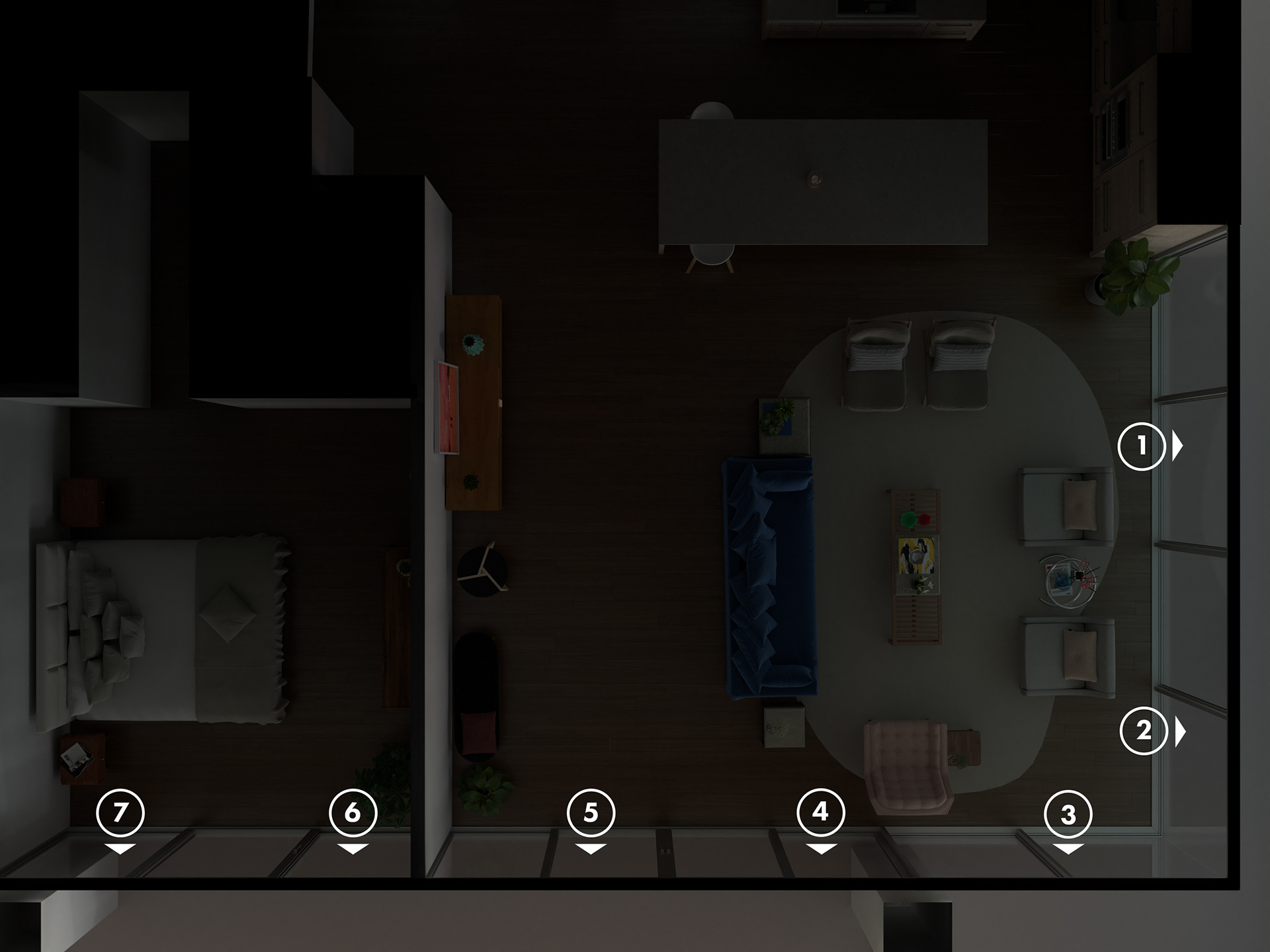

Site-measured / Simulated Lux Readings:


(1)       1.1 lux  /  1.1 lux

(2)     1.2 lux  /  1.12 lux

(3)       1.0 lux  /  1.0 lux

(4)     0.4 lux  /  0.44 lux

(5)     0.5 lux  /  0.54 lux

(6)     0.8 lux  /  0.75 lux

(7)     0.9 lux  /  0.77 lux


Still Images

-  Currently Licensed  - Download All Images Here​​​​​​​
View 01  |  Existing
View 01 | Existing
View 01  |  Colored Lighting
View 01 | Colored Lighting
View 01  |  Peak Brightness (300 cd/m²)
View 01 | Peak Brightness (300 cd/m²)
View 02  |  Existing
View 02 | Existing
View 02  |  Colored Lighting
View 02 | Colored Lighting
View 02  |  Peak Brightness (300 cd/m²)
View 02 | Peak Brightness (300 cd/m²)
View 03  |  Existing
View 03 | Existing
View 03  |  Colored Lighting
View 03 | Colored Lighting
View 03  |  Peak Brightness (300 cd/m²)
View 03 | Peak Brightness (300 cd/m²)
View 04  |  Existing
View 04 | Existing
View 04  |  Colored Lighting
View 04 | Colored Lighting
View 04  |  Peak Brightness (300 cd/m²)
View 04 | Peak Brightness (300 cd/m²)
View 05  |  Existing
View 05 | Existing
View 05  |  Colored Lighting
View 05 | Colored Lighting
View 05  |  Peak Brightness (300 cd/m²)
View 05 | Peak Brightness (300 cd/m²)

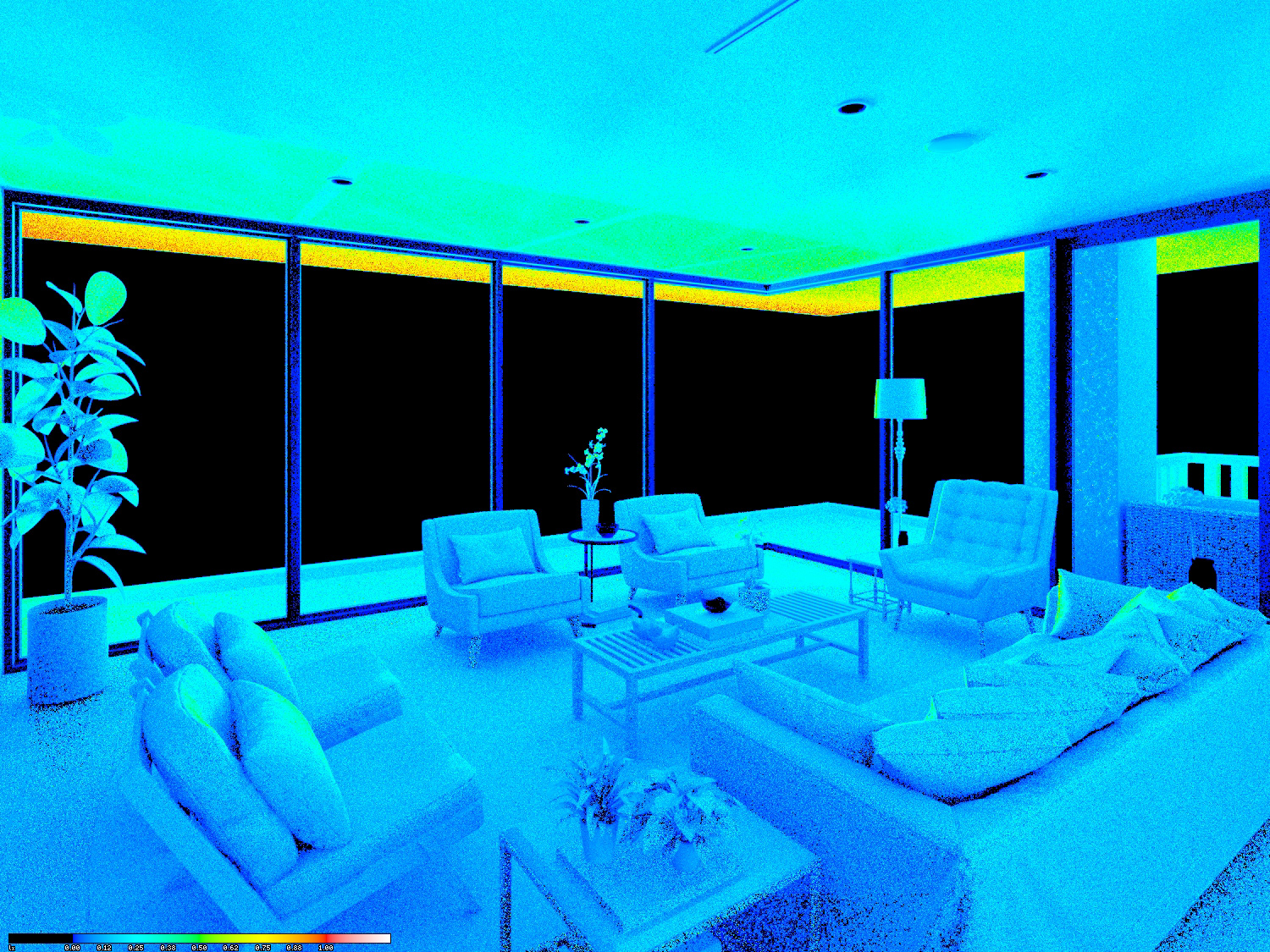

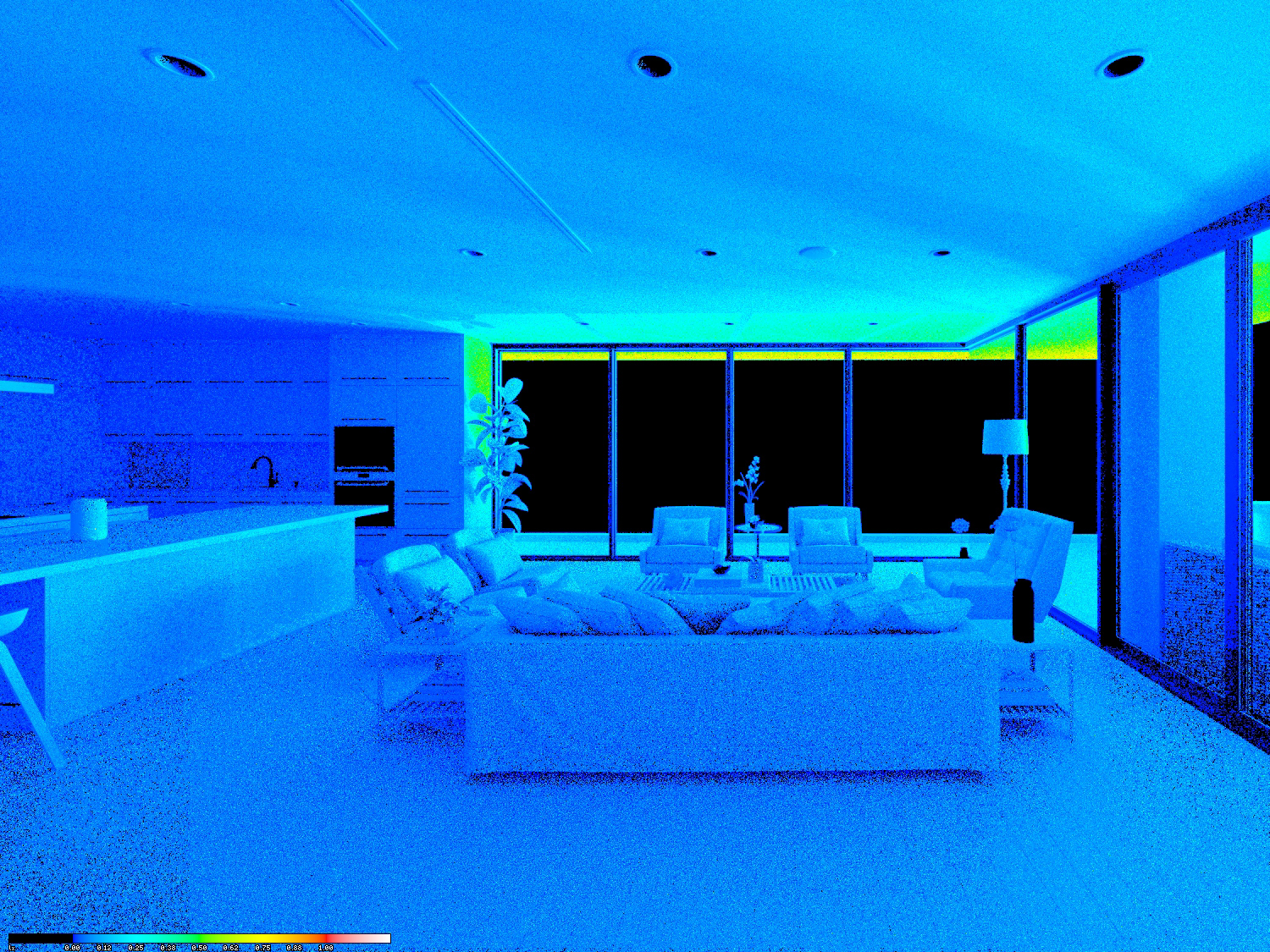

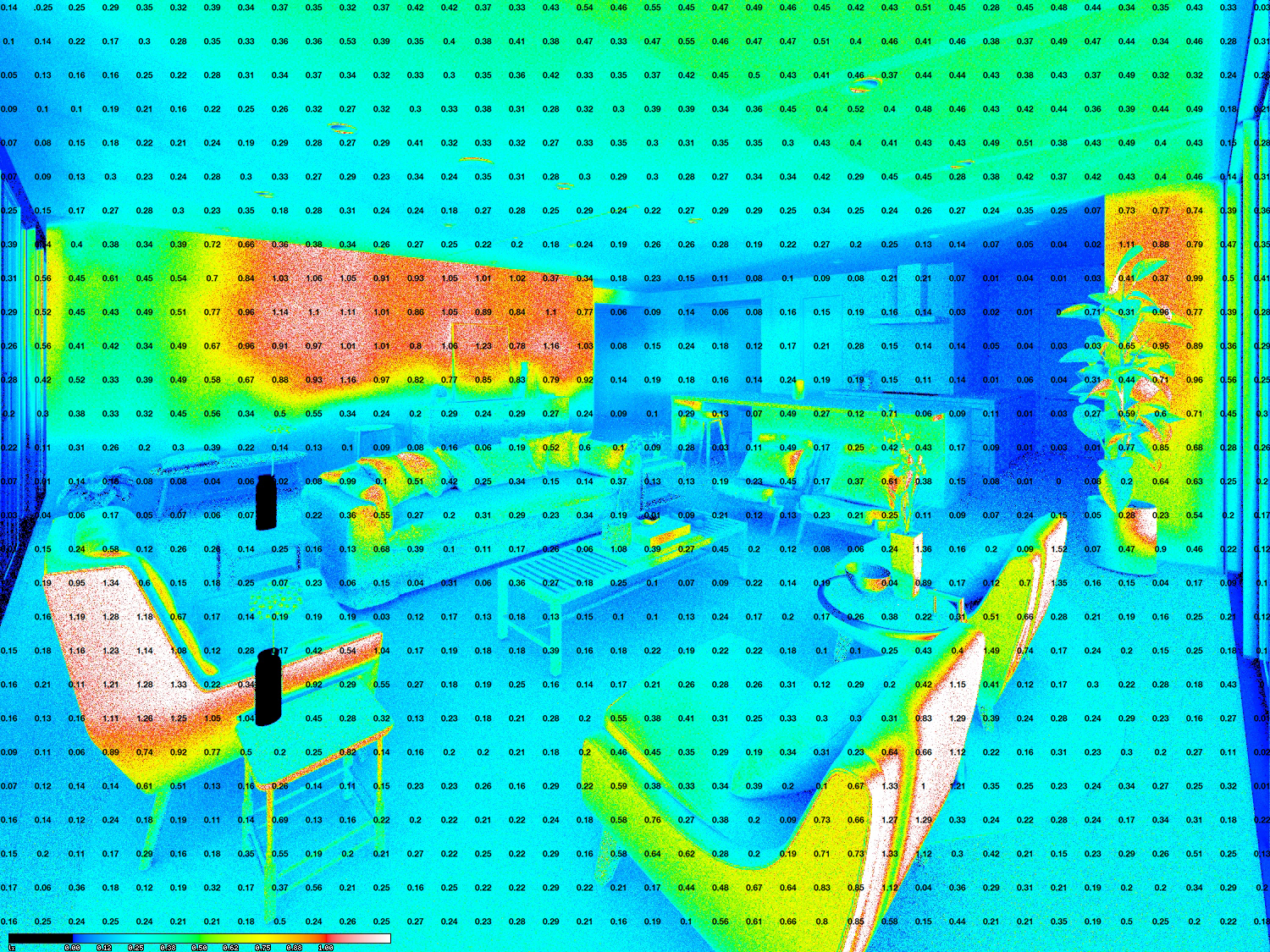

View 01  |  Existing Illuminance (0.0 - 1.0 lux)
View 01 | Existing Illuminance (0.0 - 1.0 lux)

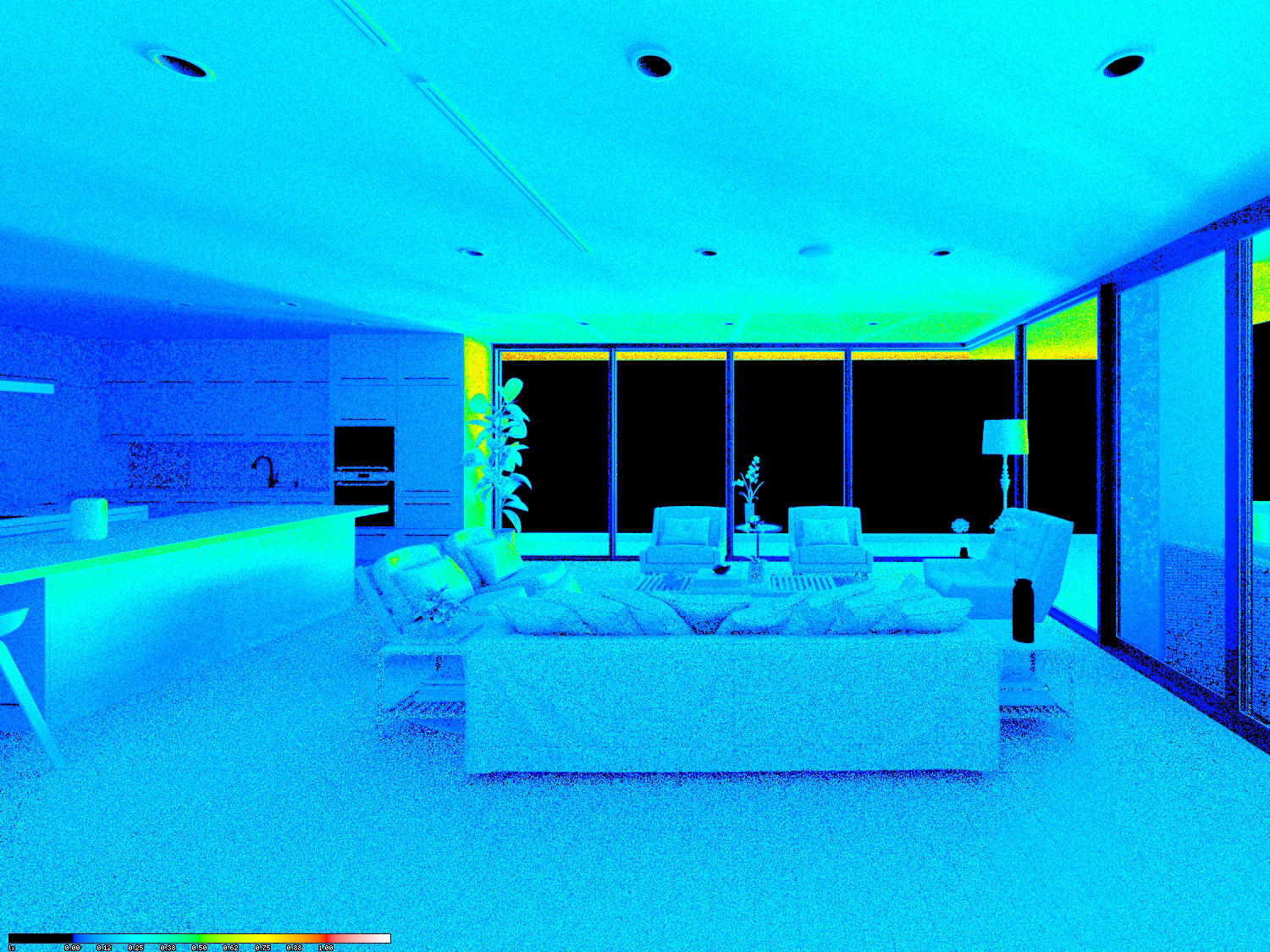

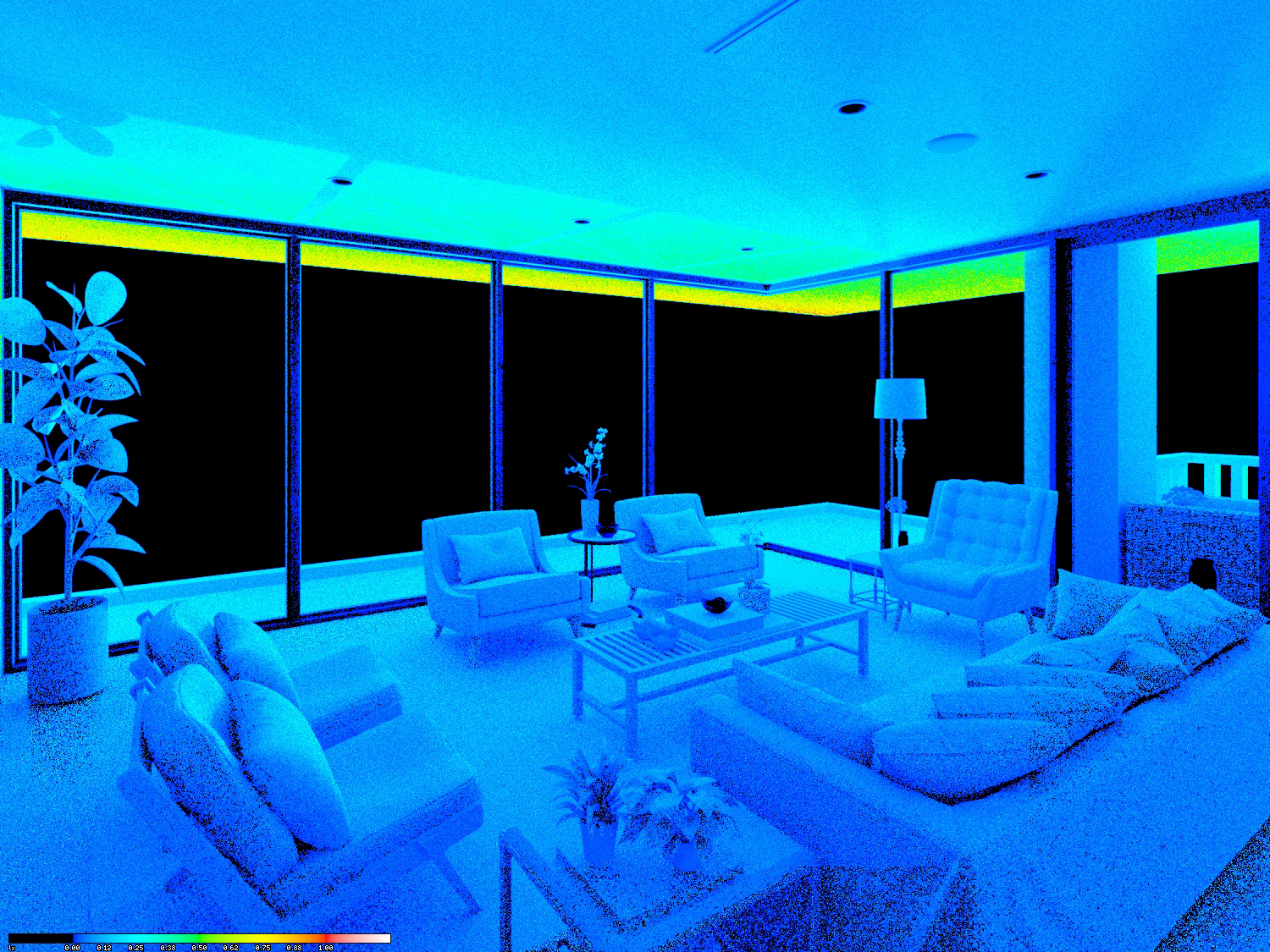

View 01  |  Peak Illuminance Impact (0.0 - 1.0 lux)
View 01 | Peak Illuminance Impact (0.0 - 1.0 lux)
View 02  |  Existing Illuminance (0.0 - 1.0 lux)
View 02 | Existing Illuminance (0.0 - 1.0 lux)
View 02  |  Peak Illuminance Impact (0.0 - 1.0 lux)
View 02 | Peak Illuminance Impact (0.0 - 1.0 lux)

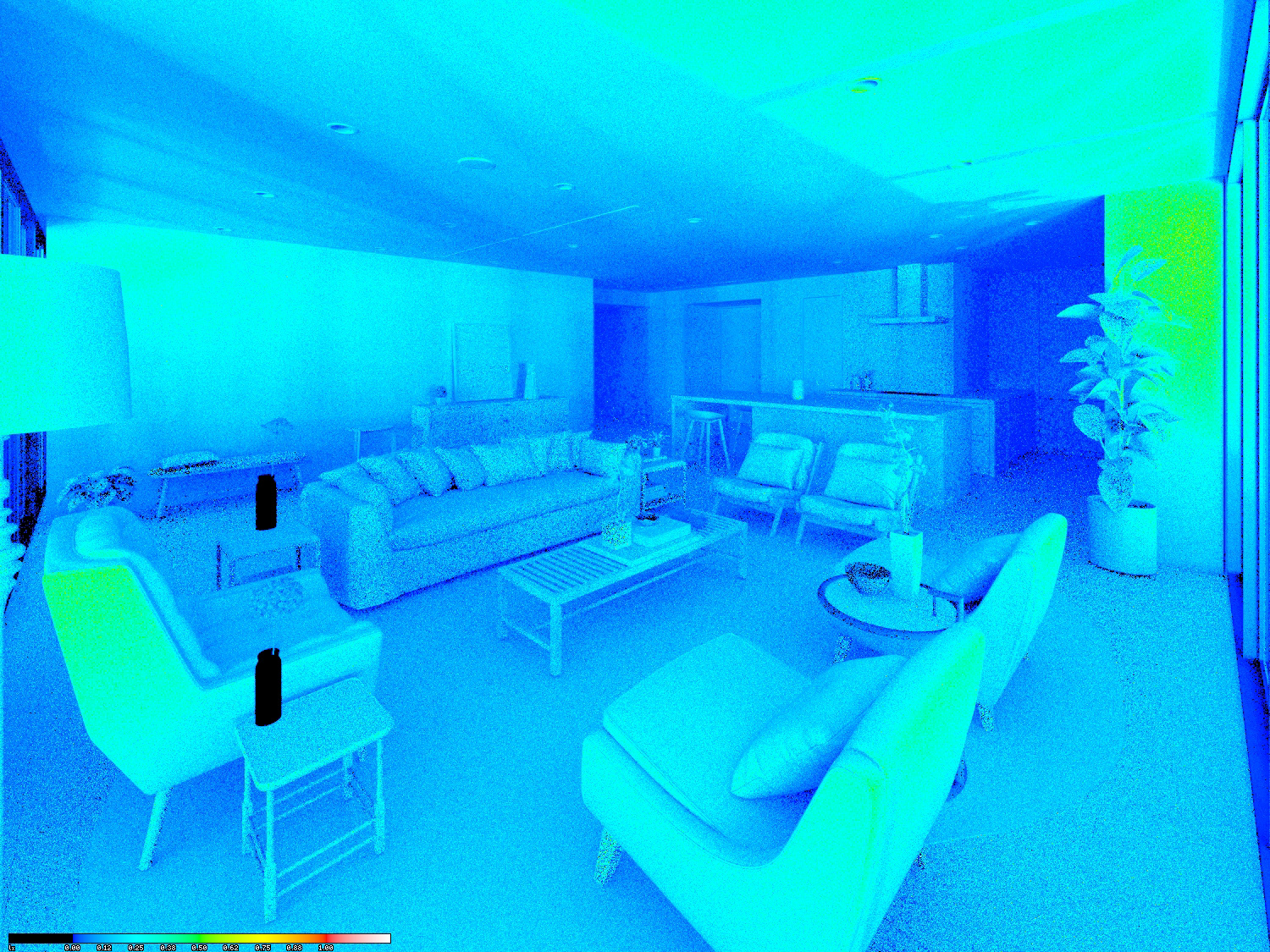

View 03  |  Existing Illuminance (0.0 - 1.0 lux)
View 03 | Existing Illuminance (0.0 - 1.0 lux)
View 03  |  Peak Illuminance Impact (0.0 - 1.0 lux)
View 03 | Peak Illuminance Impact (0.0 - 1.0 lux)
View 04  |  Existing Illuminance (0.0 - 1.0 lux)
View 04 | Existing Illuminance (0.0 - 1.0 lux)
View 04  |  Peak Illuminance Impact (0.0 - 1.0 lux)
View 04 | Peak Illuminance Impact (0.0 - 1.0 lux)

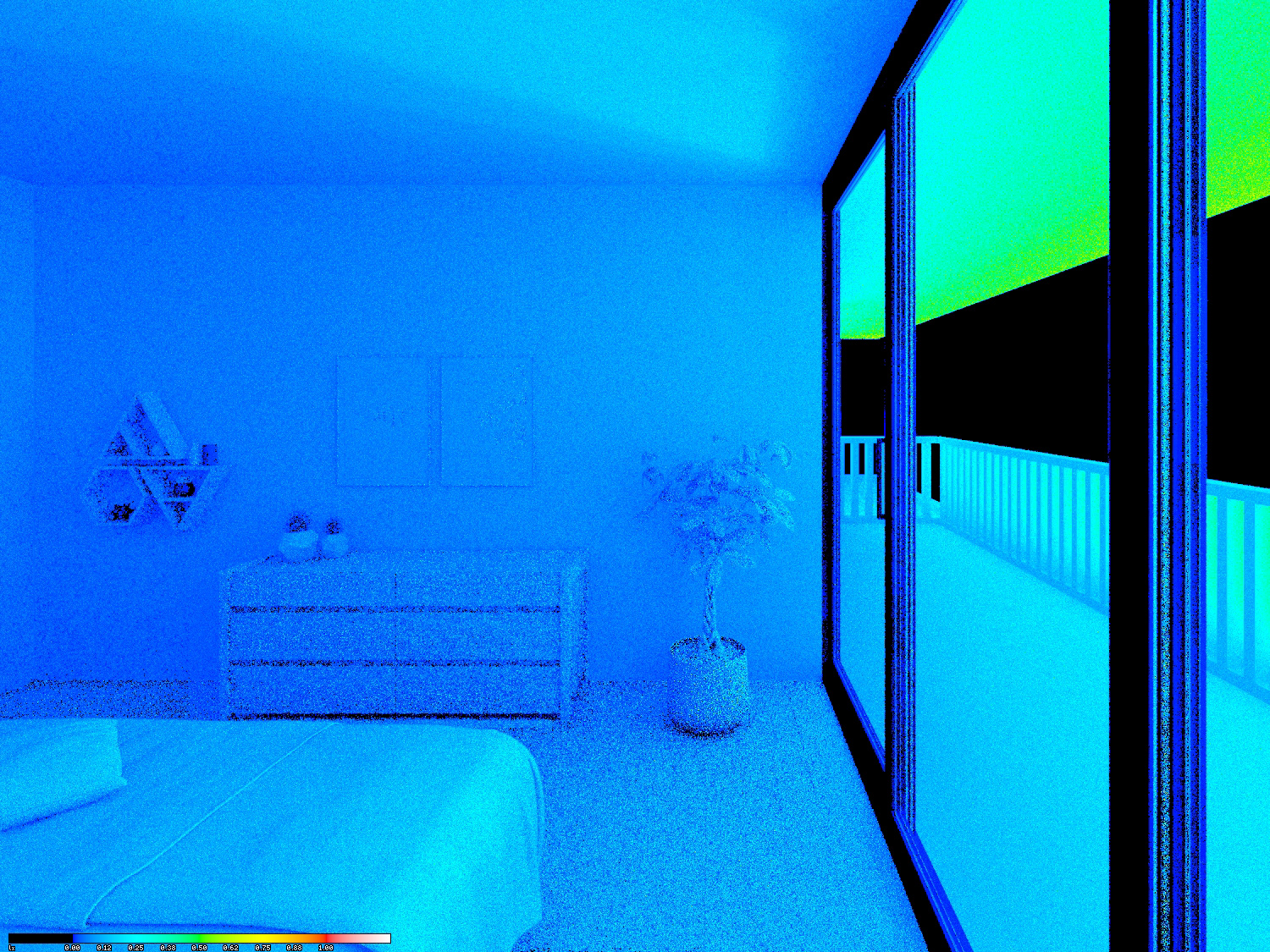

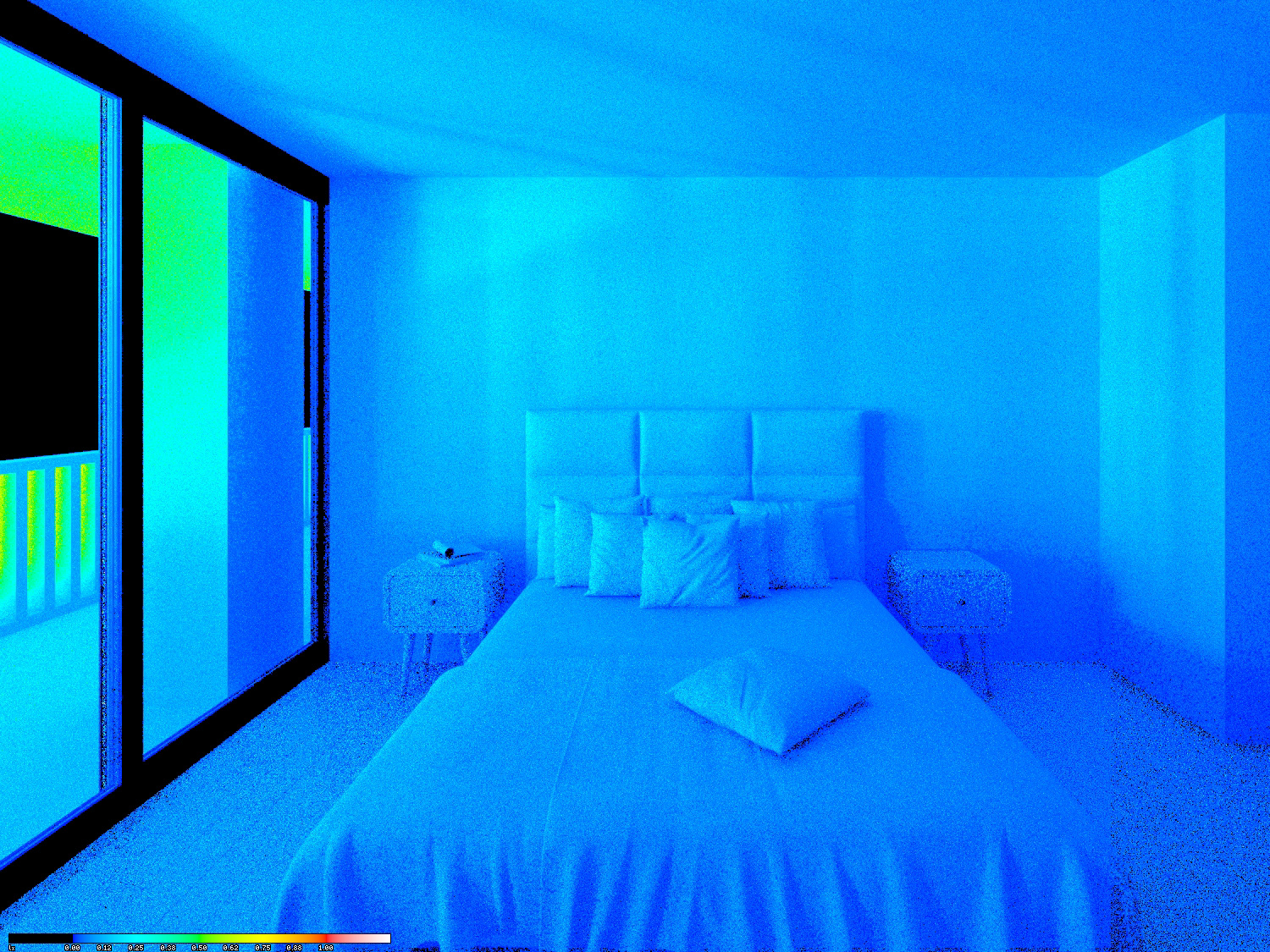

View 05  |  Existing Illuminance (0.0 - 1.0 lux)
View 05 | Existing Illuminance (0.0 - 1.0 lux)
View 04  |  Peak Illuminance Impact (0.0 - 1.0 lux)
View 04 | Peak Illuminance Impact (0.0 - 1.0 lux)
Existing Illuminance (Lux)
Existing Illuminance (Lux)
Illuminance Impact at Peak Brightness (Lux)
Illuminance Impact at Peak Brightness (Lux)
Illuminance Impact at Peak Brightness (%)
Illuminance Impact at Peak Brightness (%)


Animation

-  Currently For Demo Only  -  $3K per unit to license​​​​​​​ -

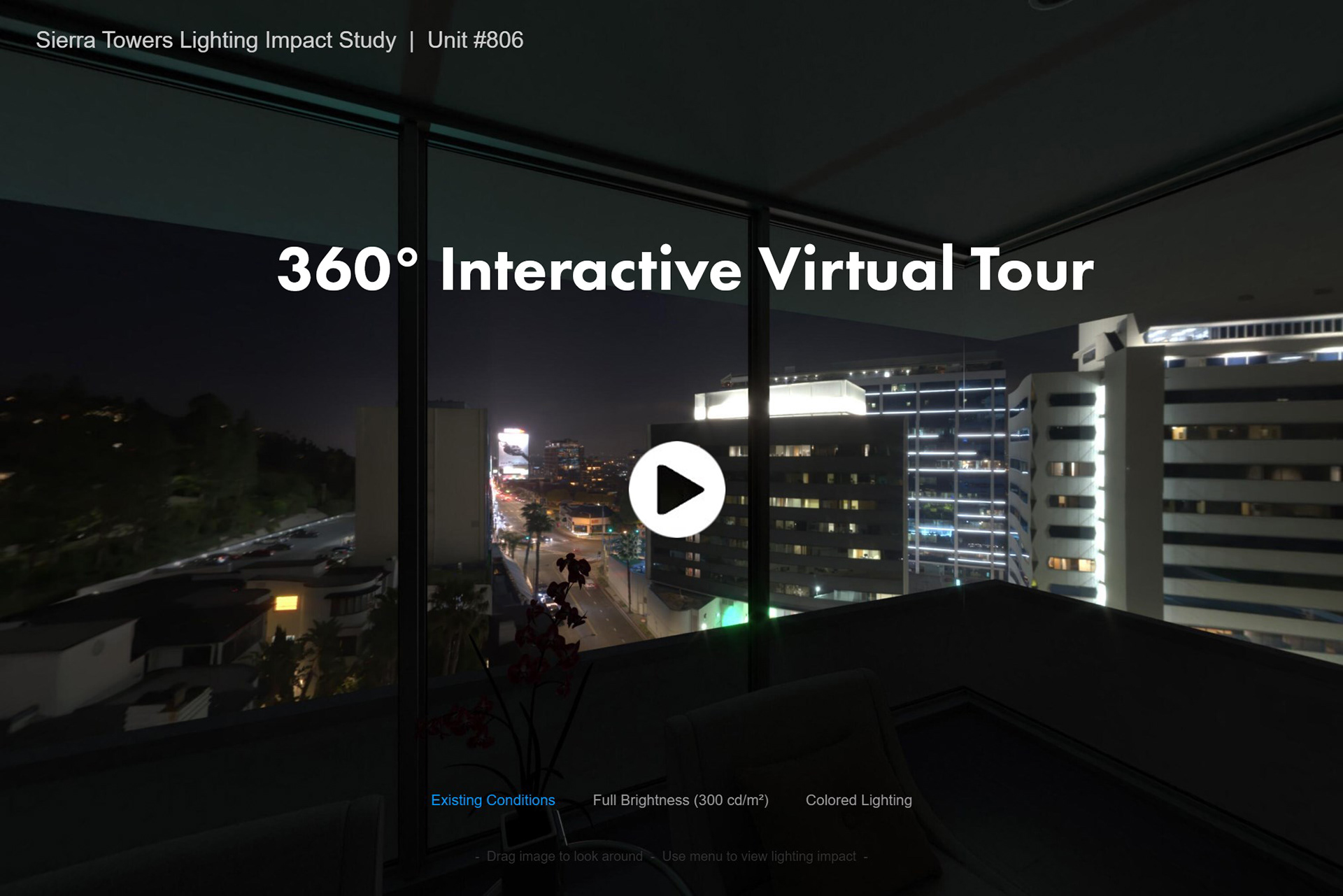

360° Interactive Virtual Tour
-  Currently For Demo Only  -  $2K per unit to license​​​​​​​ -

Notes


1. Peak signage brightness of 300 cd/m², and visual comfort requirements per WeHo's Sunset Blvd Off-Site Signage Policy

2. The size, density, and layout of the signage's linear LED elements have been extrapolated from Gensler's architectural drawings and renderings available in this report from June 2021.

For this lighting study, the LED elements have been modeled at 1.0" wide and spaced at 2.375" center-to-center within the areas of highest density.

3.  The Pendry West Hollywood Hotel at 8430 Sunset Blvd. was used as an active precedent for the look and feel of city-approved animated video content.
